HDKATOV BC1000-30 4K60 Broadcast PTZ Camera | 30X Zoom, NDI, FreeD & AI Tracking
Call Us for Price +919497609708

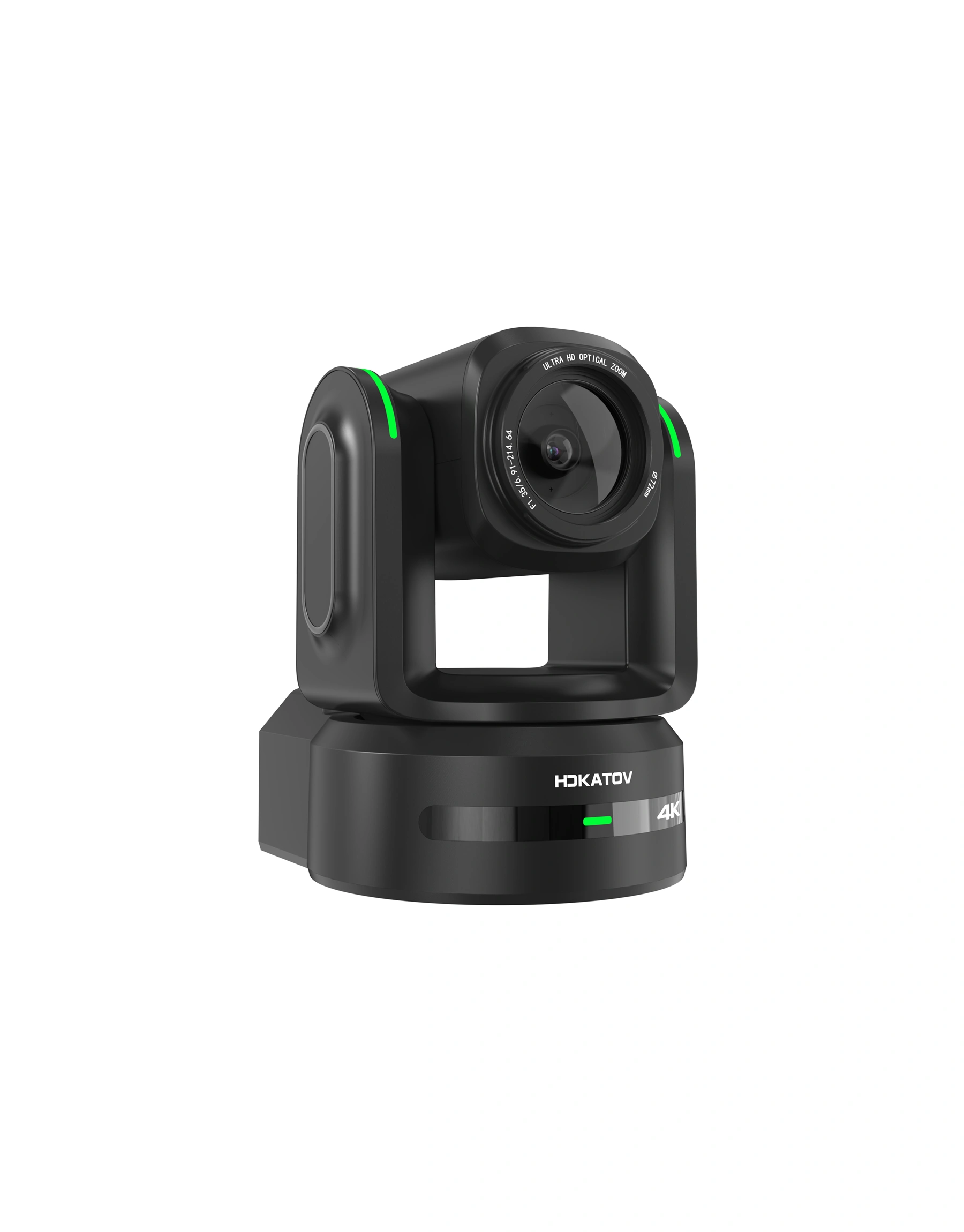

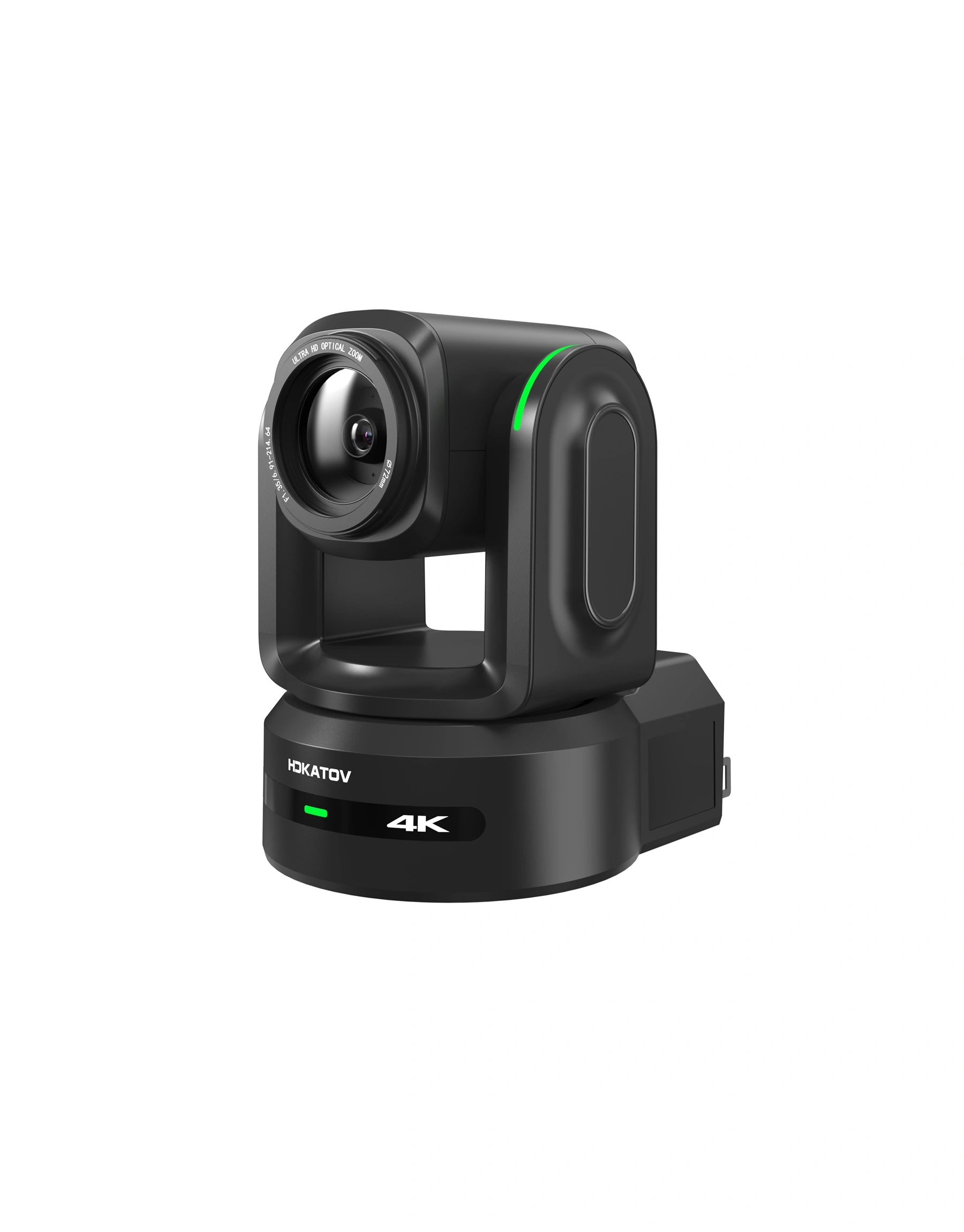

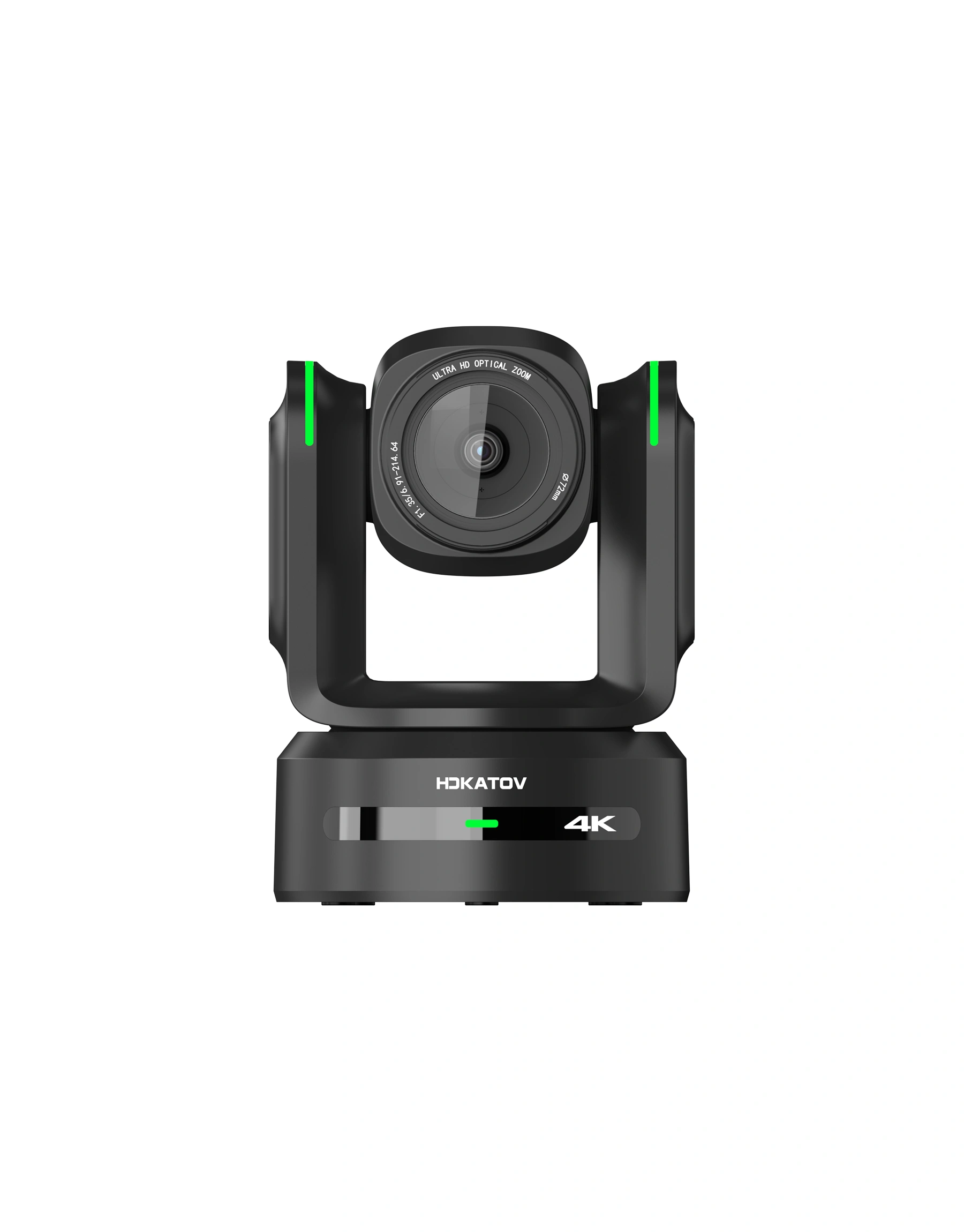

HDKATOV BC1000-30 4K60 Broadcast PTZ Camera
- True 4K 60fps ultra-HD output
- 30x optical + 16x digital zoom
- HDMI + 12G-SDI + 3G-SDI + LAN + SFP+
- Free-D, AI Tracking, Genlock and optional NDI HX3
4K60 Broadcast Imaging
SONY 1/1.8-inch CMOS sensor delivers smooth 4K 60fps ultra-HD video.
30X Optical Zoom
30x optical zoom plus 16x digital zoom for long-distance production coverage.
12G-SDI + SFP+
Professional interfaces for 4K P60 broadcast and long-distance fiber workflows.
AI Tracking Modes
Single-subject, multi-subject, zone and hybrid intelligent tracking modes.
Broadcast-Grade PTZ Camera for Studios, Events & Virtual Production
Product Snapshot
- SONY 1/1.8-inch high-quality CMOS sensor
- 4K 60fps ultra-HD output
- 30x optical zoom + 16x digital zoom
- 59° horizontal field of view
- HDMI, 12G-SDI, 3G-SDI, LAN and SFP+ outputs
- SD card local recording support
Key Features
Professional Outputs & Workflow
HDMI
Direct integration with monitors, switchers and production systems.
12G-SDI
Professional 4K broadcast signal output for modern workflows.
3G-SDI
1080p60 compatibility for existing SDI infrastructure.
LAN / IP
Network-based control and video workflow support.
SFP+ Optical
Stable long-distance fiber video delivery for large venues.
Ideal Applications
Broadcast Studios
Premium PTZ camera for professional studio and live program production.
Sports Broadcasting
Smooth 4K60 capture and long zoom for fast-moving sports coverage.
Live Events
Reliable camera solution for stages, auditoriums, conferences and concerts.
Virtual Production
Free-D tracking support for virtual studio and AR workflows.
House of Worship
Long-distance zoom and AI tracking for worship and stage streaming.
Education
Zone and hybrid tracking for lecture halls, classrooms and training spaces.
Technical Highlights
- Image Sensor: SONY 1/1.8-inch CMOS
- Resolution: True 4K 60fps Ultra HD
- Zoom: 30x optical + 16x digital
- Horizontal FOV: 59°
- Outputs: HDMI, 12G-SDI, 3G-SDI, LAN, SFP+
- Recording: SD card local recording
- Tracking: Single, multi-subject, zone and hybrid AI tracking
- Virtual Production: Free-D support
- IP Workflow: Optional NDI®|HX3
- Sync: GENLOCK support
Why Choose BC1000-30?
- Smooth 4K60 broadcast-grade output
- Long-range 30x optical zoom
- Professional SDI, IP and fiber workflow support
- Built-in preview display
- Advanced AI tracking and gesture operation
- Ready for multi-camera broadcast and virtual production
Why Buy from Sinuostech?
- Expert broadcast consultation
- PTZ camera workflow guidance
- Switcher, NDI, SDI and fiber integration support
- Delivery across India
- After-sales technical support
- Trusted broadcast technology partner
4K 60fps Broadcast-Grade Ultra HD Imaging
DKATOV BC1000-30X Broadcast PTZ Camera is equipped with a next-generation SONY 1/1.8-inch high-quality CMOS sensor, delivering true 4K 60fps ultra-high-definition output. Compared to standard 30fps systems, 60fps ensures smoother motion rendering and more stable detail capture, especially in fast-moving and multi-camera production environments. It is designed to deliver a more realistic and fluid visual experience for broadcast production, live events, and large-scale stage applications.
30x Optical + 16x Digital Zoom System
HDKATOV BC1000-30X Broadcast PTZ Camera features a 30x high-quality optical zoom lens combined with 16x digital zoom capability, enabling flexible framing from wide-angle to ultra-long-distance capture. With a 59° horizontal field of view, it delivers broad scene coverage without compromising image quality, making it suitable for large-scale studios, sports broadcasting, stage productions, and house of worship live streaming. Even at long shooting distances, it maintains sharp detail reproduction and stable image performance for consistent and accurate video output.
Multiple Professional Video Outputs & On-Board Recording
HDKATOV BC1000-30X Broadcast PTZ Camera offers HDMI, 12G-SDI, 3G-SDI, LAN, and SFP+ optical output interfaces, supporting up to 4K P60 ultra-HD signal transmission for broadcast live production and long-distance fiber workflows. The 3G-SDI output supports 1080P60 for compatibility with both legacy and modern systems. With SFP+ optical transmission, it ensures stable low-latency long-distance video delivery for large studios and multi-camera setups. It also supports SD card local recording for on-site storage and backup.

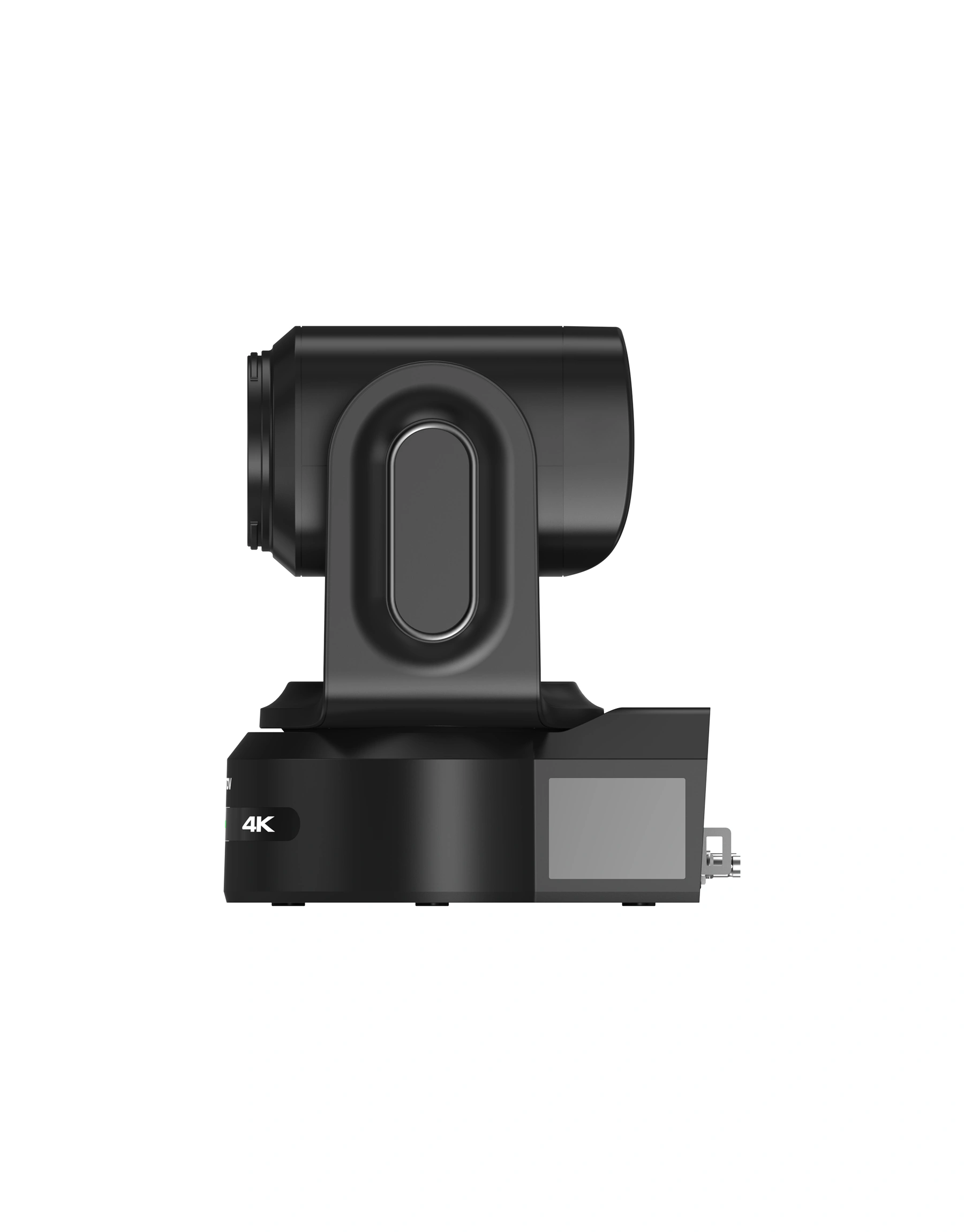

Side Display for Real-Time Preview
An integrated high-definition side display enables real-time video monitoring directly on the camera without the need for an external monitor. Operators can instantly check framing and live output in conference production, broadcast control, and multi-camera environments. This improves on-site efficiency, simplifies deployment, and supports a more intuitive and reliable workflow for professional video production.
Free-D Virtual Production Tracking System
Built-in Free-D protocol enables real-time output of camera spatial position and motion data, allowing precise synchronization of lens angle and perspective. This capability supports seamless integration with virtual studios, AR applications, and hybrid production workflows. It provides stable and repeatable tracking data in multi-camera virtual environments, ensuring accurate alignment between live footage and virtual scenes.
NDI®|HX3 (Optional) IP-Based Production Workflow
With NDI®|HX3 support, a single Ethernet cable enables simultaneous transmission of high-definition audio, video, and PTZ control data, delivering an integrated IP-based production workflow. It maintains image quality while optimizing bandwidth efficiency, reducing system cabling complexity. The solution ensures low-latency, stable video transmission and smooth remote camera control, making it ideal for modern IP-based broadcast production and multi-camera environments.
Intelligent Single-Subject Tracking Mode
Supports pre-set target recognition. Once a subject enters the frame, the system automatically detects and locks onto the person, continuously tracking movement to keep the main subject centered. The PTZ system dynamically adjusts framing and camera movement in real time, ensuring smooth and stable motion capture. It is ideal for personal live streaming, lecture recording, and mobile presentation scenarios.
Multi-Subject Intelligent Tracking Mode
The system intelligently detects multiple subjects within the frame and automatically switches tracking targets based on scene dynamics, ensuring each speaker or participant is clearly captured. No manual operation is required, as the PTZ and lens automatically adjust framing and focus according to subject position and movement. This enables continuous and stable multi-subject tracking, making it ideal for group discussions, team presentations, educational interaction, and multi-person recording scenarios.
Zone-Based Intelligent Tracking Mode
The system supports up to four preset tracking zones via a web interface. When a subject enters a defined zone, zone tracking mode is automatically activated, allowing the camera to capture both the speaker and the presented environment within the same frame. The PTZ system automatically adjusts framing and camera movement to maintain stable and continuous video output, making it ideal for long-distance shooting and large-scale venue production environments.
Hybrid Intelligent Tracking Mode
The system supports a hybrid tracking mode with multi-zone preset areas for precise region-based tracking. As the speaker moves between different zones, the camera automatically switches to the corresponding wide-angle view, ensuring smooth and continuous scene transitions. When the subject moves beyond the predefined zones, the system seamlessly shifts into intelligent tracking mode to maintain subject lock and follow movement paths in real time, delivering uninterrupted and stable video capture for lectures, presentations, and large-scale events.
Intelligent Gesture Control for Easier Operation
Supports 5 AI gesture controls, enabling users to quickly turn AI tracking on or off, switch tracking targets, and control zoom in and zoom out functions.
Without additional control devices, users can achieve more efficient camera operation for live streaming, conferencing, and professional video production.
GENLOCK Sync for Multi-Camera Precision
HDKATOV BC1000-30X Broadcast PTZ Camera supports GENLOCK synchronization, allowing multiple cameras to operate under a shared reference clock for fully synchronized video capture and output. This ensures frame-accurate alignment across all camera feeds, eliminating timing discrepancies during multi-camera production. It enhances switching stability and production reliability, making it ideal for broadcast production, live events, and large-scale multi-camera workflows.
Â
FAQ Section
Does BC1000-30 support FreeD?
Yes. FreeD tracking is supported, making it suitable for virtual production and XR studio environments.
What zoom range does the camera offer?
The BC1000-30 features a 30x optical zoom lens along with additional digital zoom capability.
Is the camera suitable for church live streaming?
Yes. It is designed for houses of worship, broadcasting, education, esports and live production.
Does BC1000-30 support 12G-SDI?
Yes. Professional 12G-SDI output is included alongside HDMI, USB and LAN connectivity.
| Camera parameters | |
|---|---|
Resolution | HDMI: 3840*2160 p60/59.94/50/30/29.97/25；1920*1080 p60/59.94/50/30/29.97/25；1280*720 p60/50；1920*1080 i60/59.94/50 12G SDI: 3840*2160 p60/59.94/50/30/29.97/25；1920*1080 p60/59.94/50/30/29.97/25；1280*720 p60/50；1920*1080 i60/59.94/50 3G SDI: 1920*1080 p60/59.54/50/30/29.97/25；1920*1080 i60/59.94/50 SFP+: 3840*2160 p60/59.94/50/30/29.97/25；1920*1080 p60/59.94/50/30/29.97/25；1280*720 p60/50；1920*1080 i60/59.94/50 USB: MJPEG 3840*2160，2560*1440，1920*1080，1280*720，960*540，640*360，480*270，384*216，320*180，256*144 | YUY2 960*540，640*360，480*270，384*216，320*180，256*144 | NV12 1280*720，960*540，640*360，480*270，384*216，320*180，256*144 |
| Image Sensor | 1/1.8-inch SONY CMOS |
Zoom | Optical zoom: 30X Digital zoom: 16x |
| Lens | f=6.91(wide)~214.64mm(tele)，F1.35~F4.6 |
Horizontal field of view | 59°(W)~1.98°(T) |
| Vertical field of view | 34.14°(W)~1.12°(T) |
| Gimbal | |
| Gimbal Preset | Remote controls: 10, Keyboards: 255, Accuracy: 0.1° ±10% |
Gimbal Acceleration Curve | Gentle，Standard，Swift |
| Horizontal rotation angle | -171°～ +171° |
| Vertical rotation angle | -30°～ +90° |
Horizontal rotation speed | 0.1°/S～ 180°/S |
| Vertical rotation speed | 0.1°/S～ 180°/S |
| Image Parameters | |
| Noise reduction | 2D & 3D |
| Exposure | Automatic, Manual, Aperture Priority, Shutter Priority |
| White Balance | Auto, Manual,Indoor,Outdoor,One-touch White Balance, Auto Tracking,Color Temperature |
| low light | 0.1Lux |
| Anti-flicker | Off,50Hz,60Hz |
| Focusing method | Automatic, Manual |
| Gamma | Standard, Linear, Pattern, Custom |
| Inversion/Image Freeze | Support |
| Backlight compensation | Support |
| Flip/Mirror | Support |
| Defog | Support |
| Privacy Masking | Support |
| Shutter | 1/60S ～ 1/10000S |
| S/N Ratio | ≥50dB |
| Online streaming | |
| Video encoding format | H.264, H.265, MJPEG |
| Rate Control | Variable bit rate, constant bit rate |
| Bitrate | Stream 0: 3840*2160, 1920*1080, 1280*720 Stream 1: 640*360 Stream 2: 1920*1080, 1280*720 |
| Supported Protocol | TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, ONVIF, DHCP, VISCA Over IP, NDI®|HX3(optional), Free-D |
| Audio information | |
| Compression Standard | ACC |
| Audio Bitrate | 128kbps |
| Side Display | |
| Resolution | 320 * 240 |
| Display Size | 2inch |
| Display Information | IP Address,Network Traffic,Main Output Resolution,Aux Output Resolution |

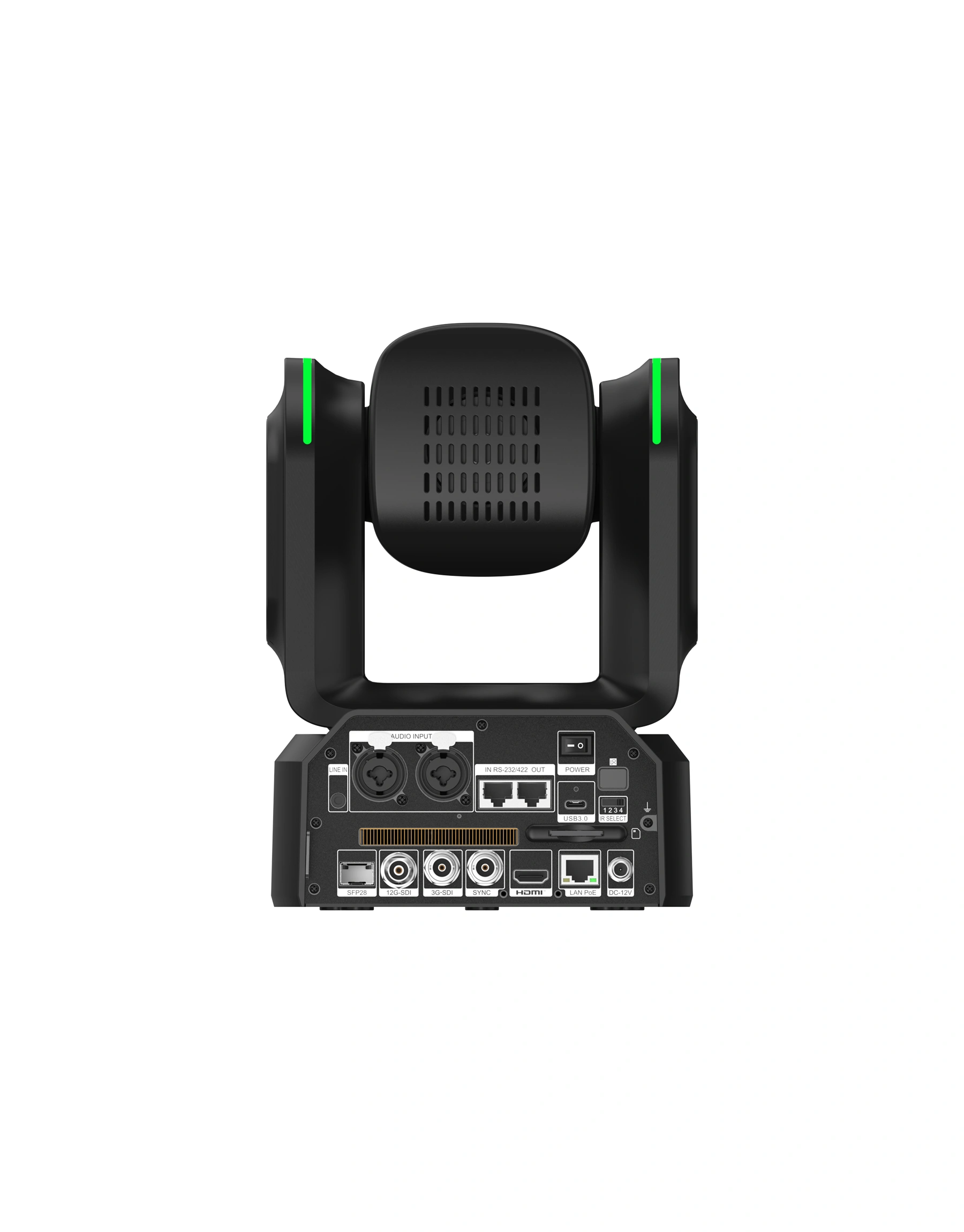

| Input/Output | |
| HDMI port | HDMI:1 port, HDMI 2.0 |
| Optical Module Interface | Fiber(SFP28)*1 |
| SDI port | 12G-SDI: 1 port; 3G-SDI: 1 port，SYNC(Genlock/Timecode)*1 |
| Communication Interface | 1 port for RS422/RS232, 1 port for VISCA/Pelco- D/P protocol |
| Network Interface | RJ45: 1 port, 1000M auto-sensing Ethernet (Supports PoE++ (IEEE 802.3bt)) |
| Audio Interface | Audio: 1×3.5mm Line In (AUDIO INPUT), 2×XLR audio inputs |
| Power connector | IEC 60130-10 Type A |
| USB Port | USB3.0,Type-C Socket *1 Channel |
| SD card | SD card*1 Channel |
| Basic Parameters | |
| Input voltage | DC 12V |
| Input current | Up to 1.5A |
| Operating Temperature | 0～40℃ |
| Power consumption | Up to 18W |
| Color | Black |
| Specifications | 190*230*258mm |
| Weight | 4.15KG |
| Accessory List | DC12V Power Adapter, IR Remote Control, User Manual, HDMI Video Cable, USB 3.0 Video Cable, RS-232 Serial Cable (Optional),Serial adapter cable,Wall Mount Bracket |
| Weight | 4.15 kg |
|---|---|
| Dimensions | 19 × 23 × 25.8 cm |
