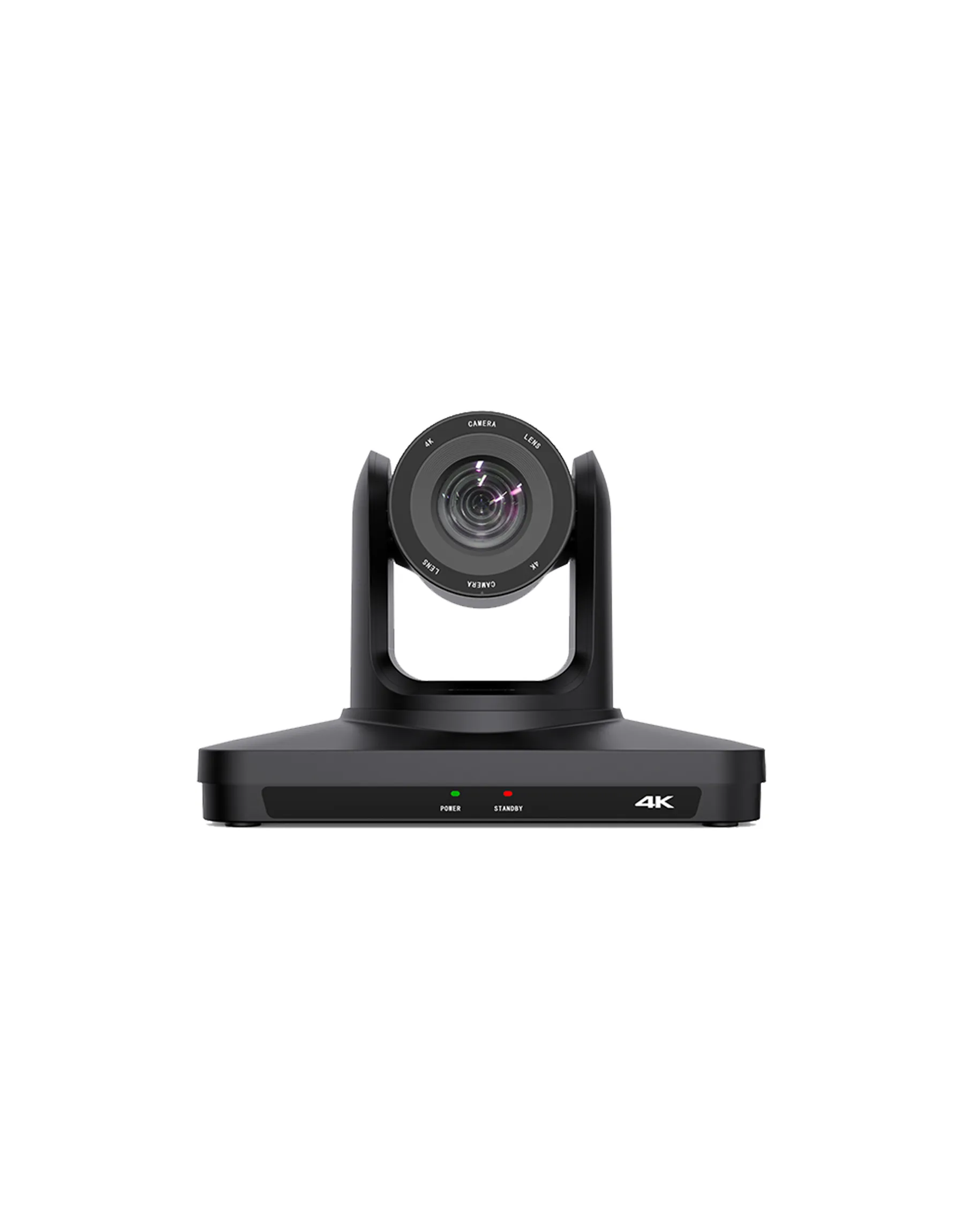

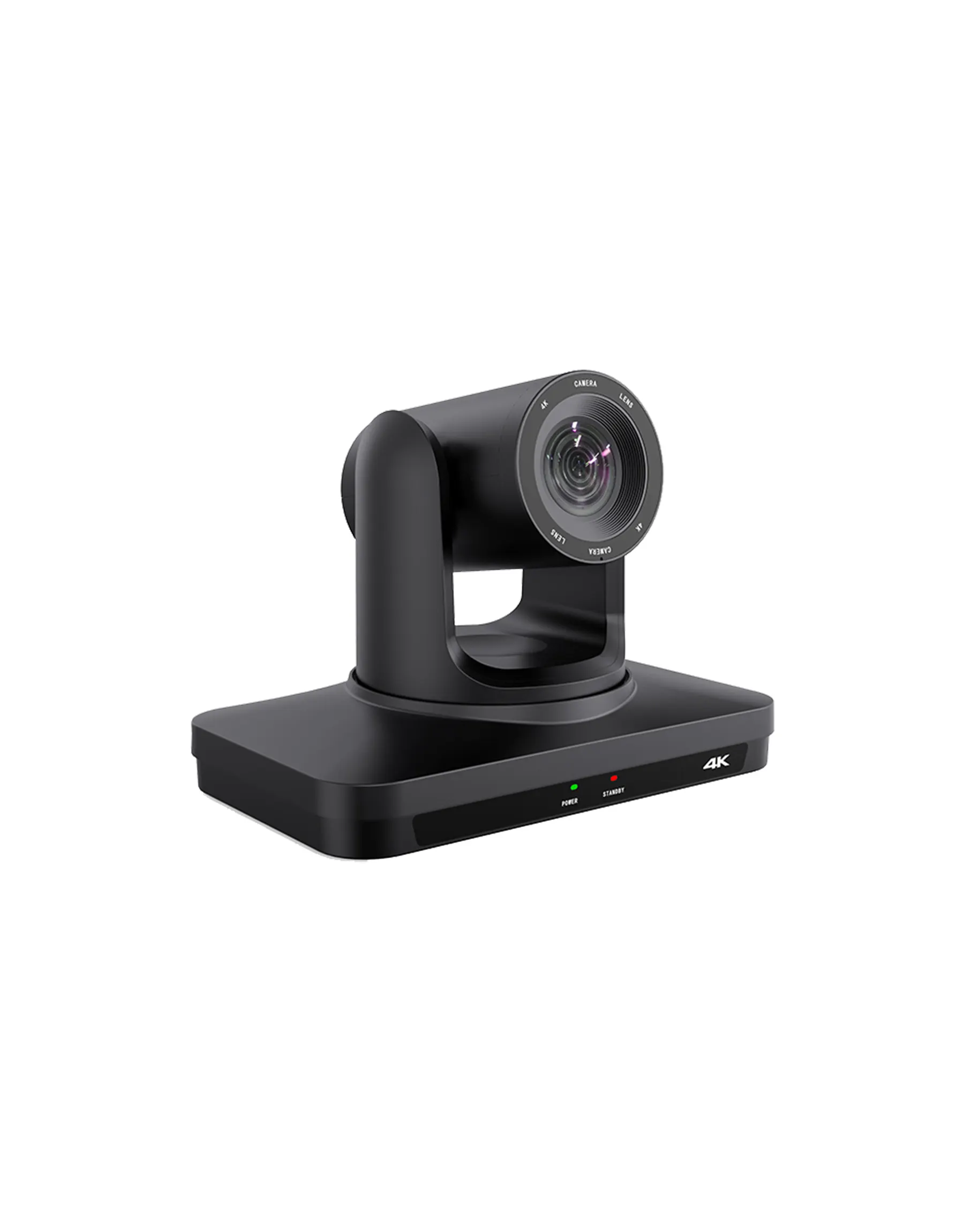

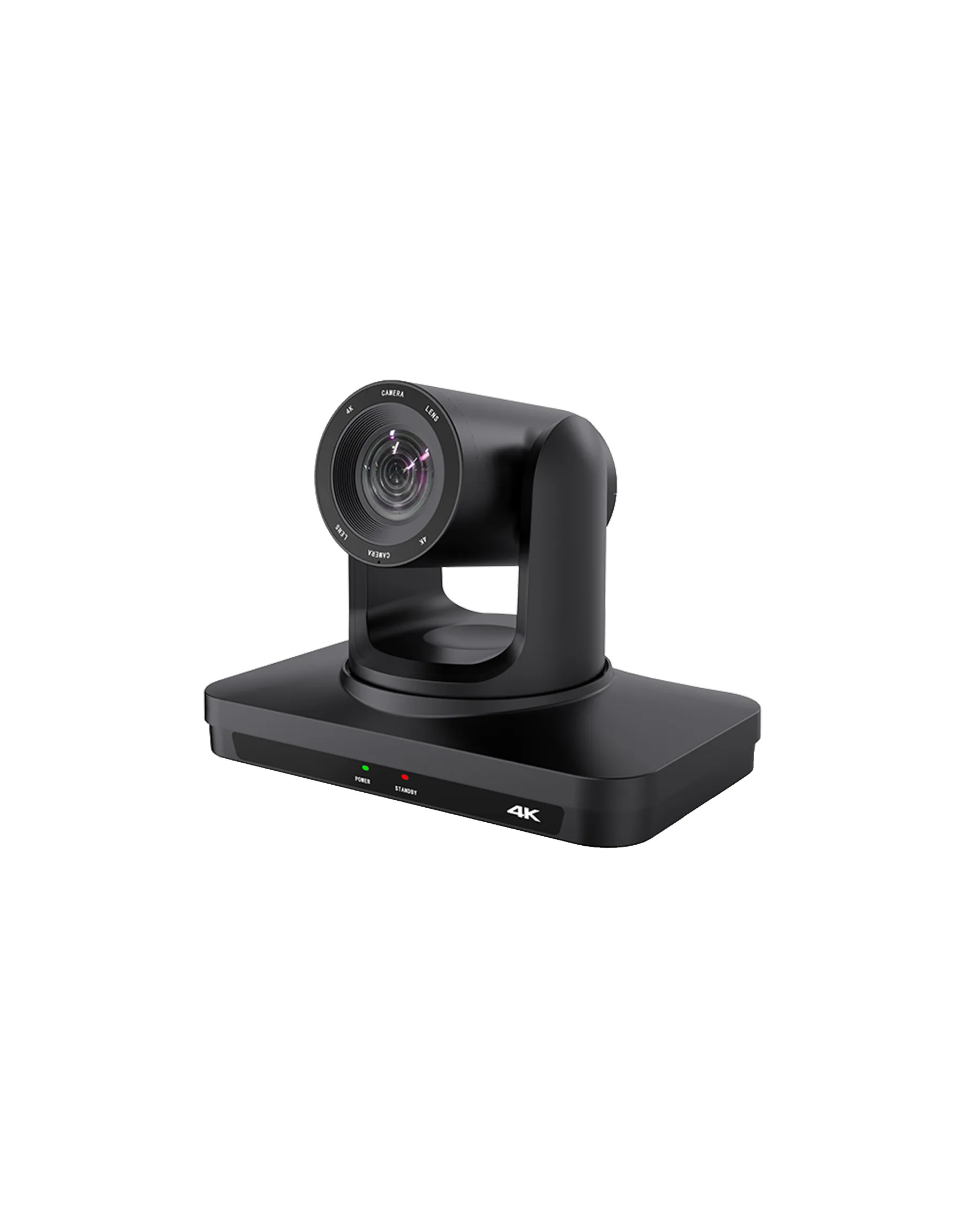

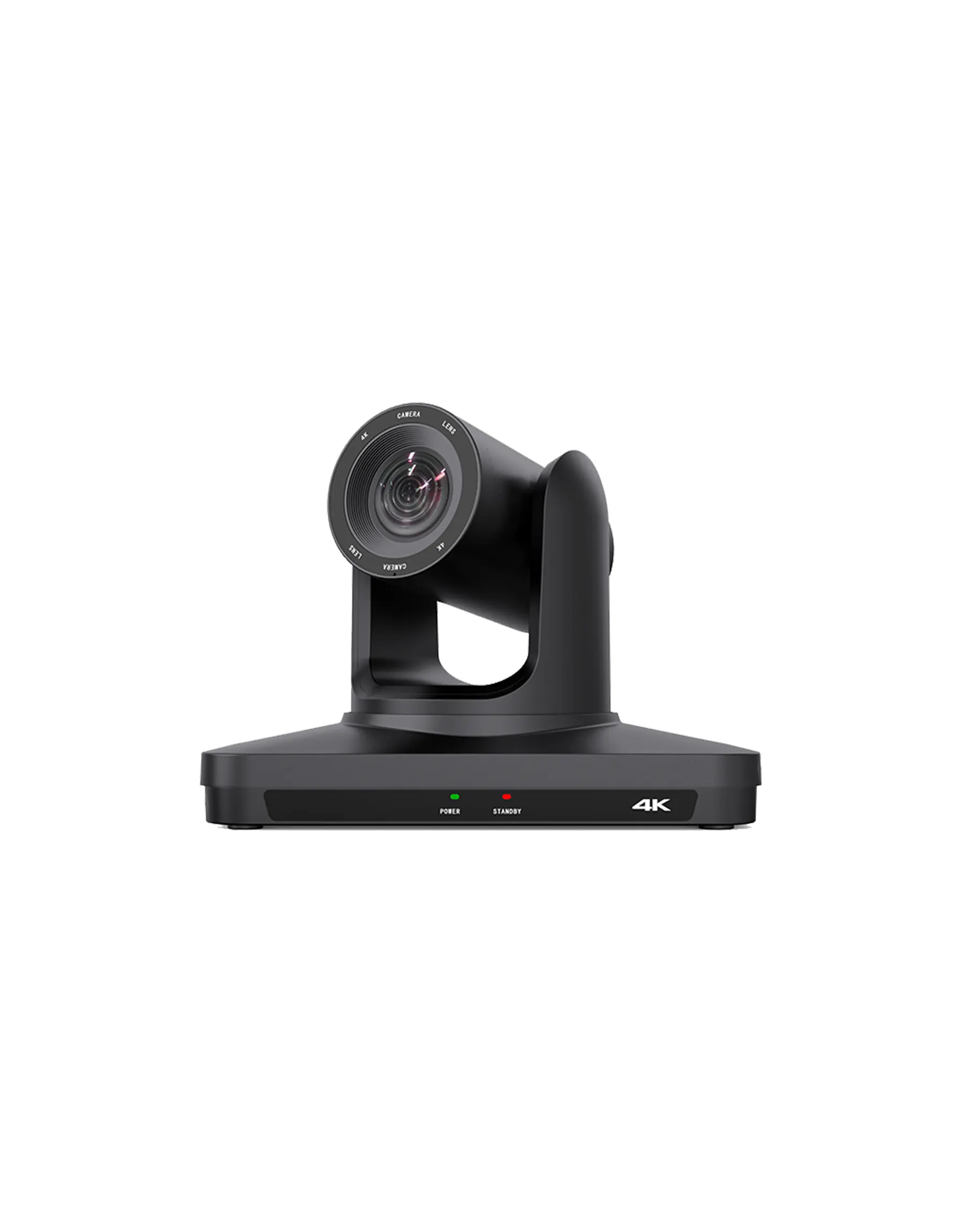

Kato KT-UH43DF 12x HDMI USB3.0 IP 3G – SDI PTZ Camera
Professional 4K PTZ Camera with 12x/20x optical zoom, USB 3.0, HDMI, LAN, and 3G-SDI output, delivering crystal-clear 4K@30fps Ultra HD video with AI auto-tracking and auto-framing. Designed for conferencing, live streaming, lecture halls, broadcasting, and professional video production.
Price range: ₹58,500 through ₹63,000
Professional 4K PTZ Camera with Full Interface Connectivity
Enhance your professional video production with this advanced 4K PTZ Camera, engineered for live streaming, conferences, lecture halls, worship spaces, and broadcast environments. Powered by a high-performance Sony 1/2.8-inch CMOS sensor with 8.29MP resolution, this camera delivers ultra-clear 4K video, powerful zoom capabilities, AI intelligent tracking, and flexible multi-interface output for seamless integration.
Key Features
Ultra HD 4K30 Video Output
Built with a premium Sony 1/2.8” 8.29MP image sensor, the camera supports up to 3840 × 2160 resolution at 30fps, delivering smooth, sharp, and highly detailed Ultra HD video output for professional-grade production.
12x / 20x Optical Zoom Options
Available in two optical zoom variants for different production needs:
- 12x Optical Zoom (UH43DF) – 72.5° distortion-free wide-angle view
- 20x Optical Zoom (UH43DH) – 58.7° distortion-free viewing angle
Perfect for capturing wide conference rooms, lecture hall presentations, stage performances, and close-up details.

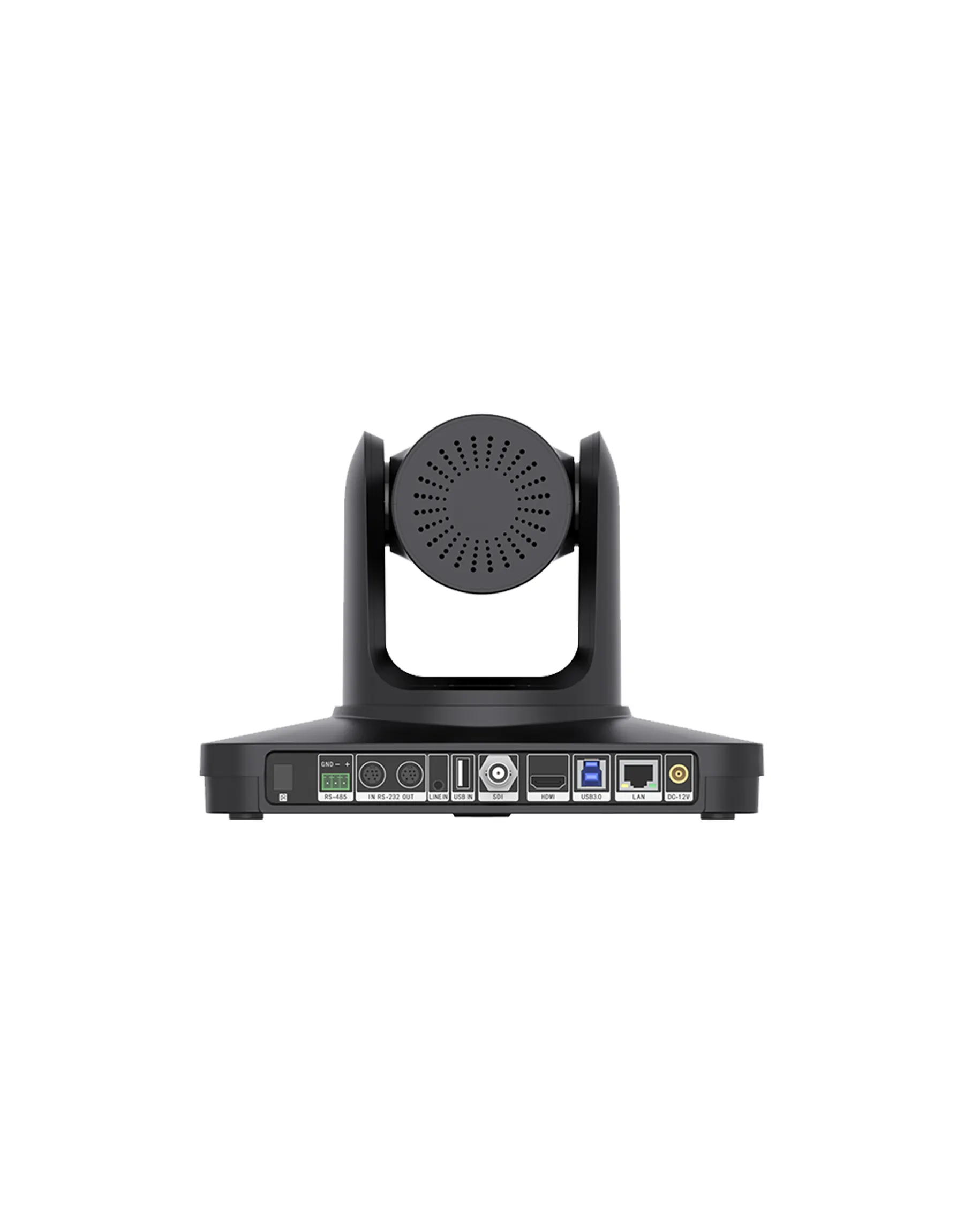

Full Interface Connectivity (4-in-1 Output)
Comes equipped with complete professional output interfaces:
- USB 3.0 – Supports 4K30 output
- HDMI – Supports 4K30 output
- LAN/IP Streaming – Supports 1080p60 output
- 3G-SDI – Supports 1080p60 output
All interfaces can work simultaneously for maximum flexibility.
Exceptional Low-Light Performance
Advanced 2D & 3D digital noise reduction with an ultra-high signal-to-noise ratio CMOS sensor ensures clean, clear, and detailed images even in challenging low-light conditions, with an SNR exceeding 50dB.
AI Intelligent Human Tracking & Auto Framing
Powered by a next-generation AI tracking algorithm:
- AI Auto Tracking – Automatically follows the speaker or presenter
- Auto Framing – Intelligently adjusts framing based on participants
Ideal for conferences, lectures, and live productions.
Professional Multi-Camera Control
Supports centralized control of multiple PTZ cameras via:
- RS232
- RS485
Simplifying professional multi-camera setups.
Infrared Transparent Transmission
Supports IR signal passthrough, allowing user remote control signals to be transmitted to video conferencing terminals through the RS232 IN port.
Wide Control Protocol Compatibility
Supports professional PTZ control protocols:
- VISCA
- VISCA over IP
- PELCO P / D
- ONVIF
With automatic protocol recognition for easy integration.
Multiple Video Compression Formats
Supports multiple encoding formats:
- YUY2
- H.265
- MJPG
- H.264
Ensuring efficient bandwidth optimization and flexible streaming.
Multiple Streaming Protocol Support
Compatible with major streaming protocols:
- ONVIF
- SRT
- RTSP
- RTMP
- RTMPS
Ideal for live streaming and IP broadcasting.
Flexible Installation Options
Supports multiple installation methods:
✔ Desktop Installation
✔ Ceiling Mount
✔ Wall Mount
Suitable for various professional environments.
Important AI Tracking Output Note
When AI Tracking and Auto Framing are enabled:
- USB 3.0 supports 4K30 output
- HDMI + IP support 1080p60 output
- 3G-SDI output will be disabled
- USB 3.0, HDMI, and IP can output simultaneously.
Ideal Applications
✔ Video Conferencing
✔ Live Streaming
✔ Lecture Halls
✔ Church Broadcasting
✔ Online Education
✔ Corporate Meetings
✔ Event Production
✔ Auditorium Coverage
Why Choose This PTZ Camera?
With Ultra HD 4K video, AI tracking, full-interface connectivity (USB/HDMI/LAN/SDI), professional control protocols, and excellent low-light performance, this PTZ camera is a complete solution for professional broadcasting, conferencing, and live production environments.
| Models | KT-UH43DF 12x, KT-UH43DH 20x |
|---|
