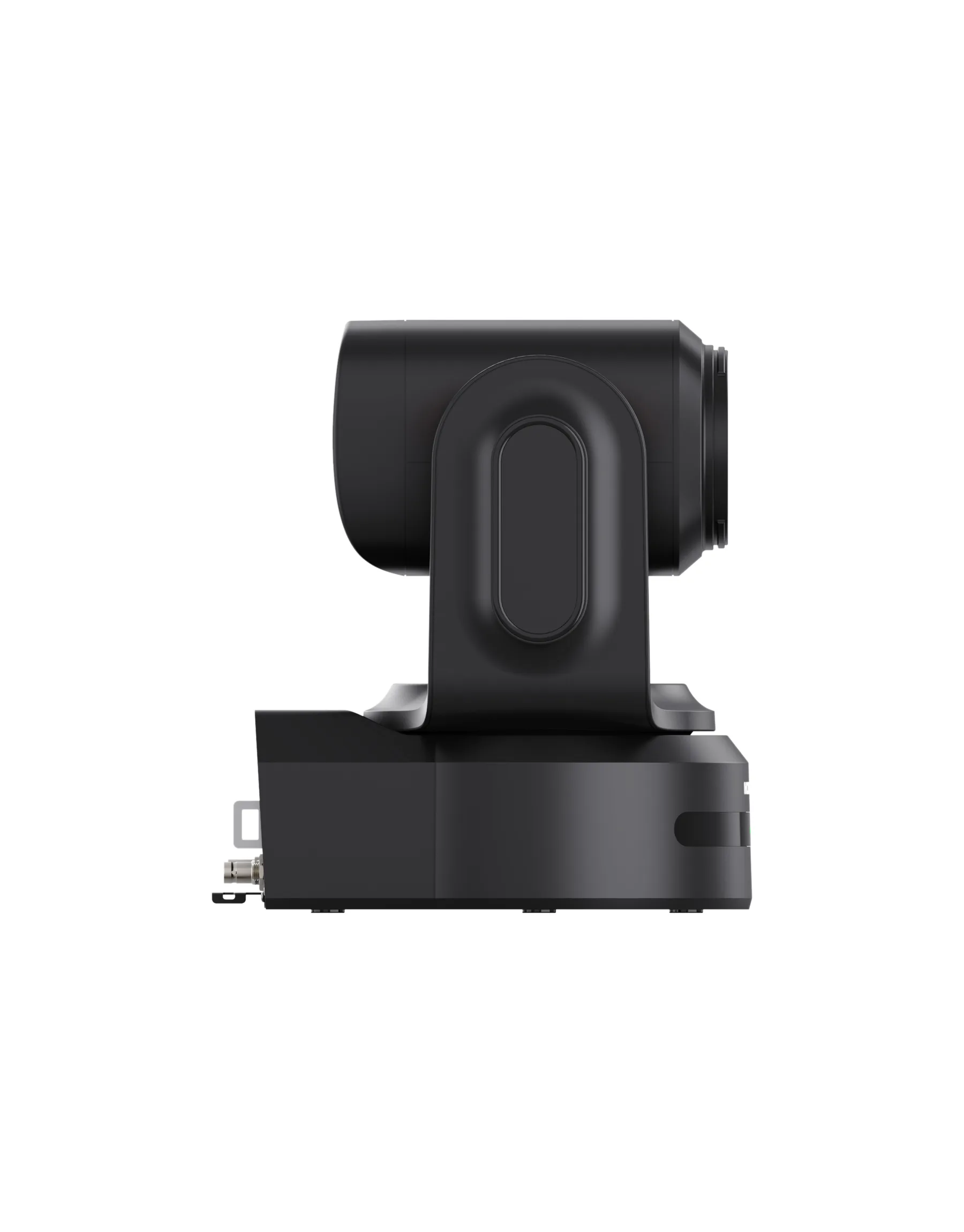

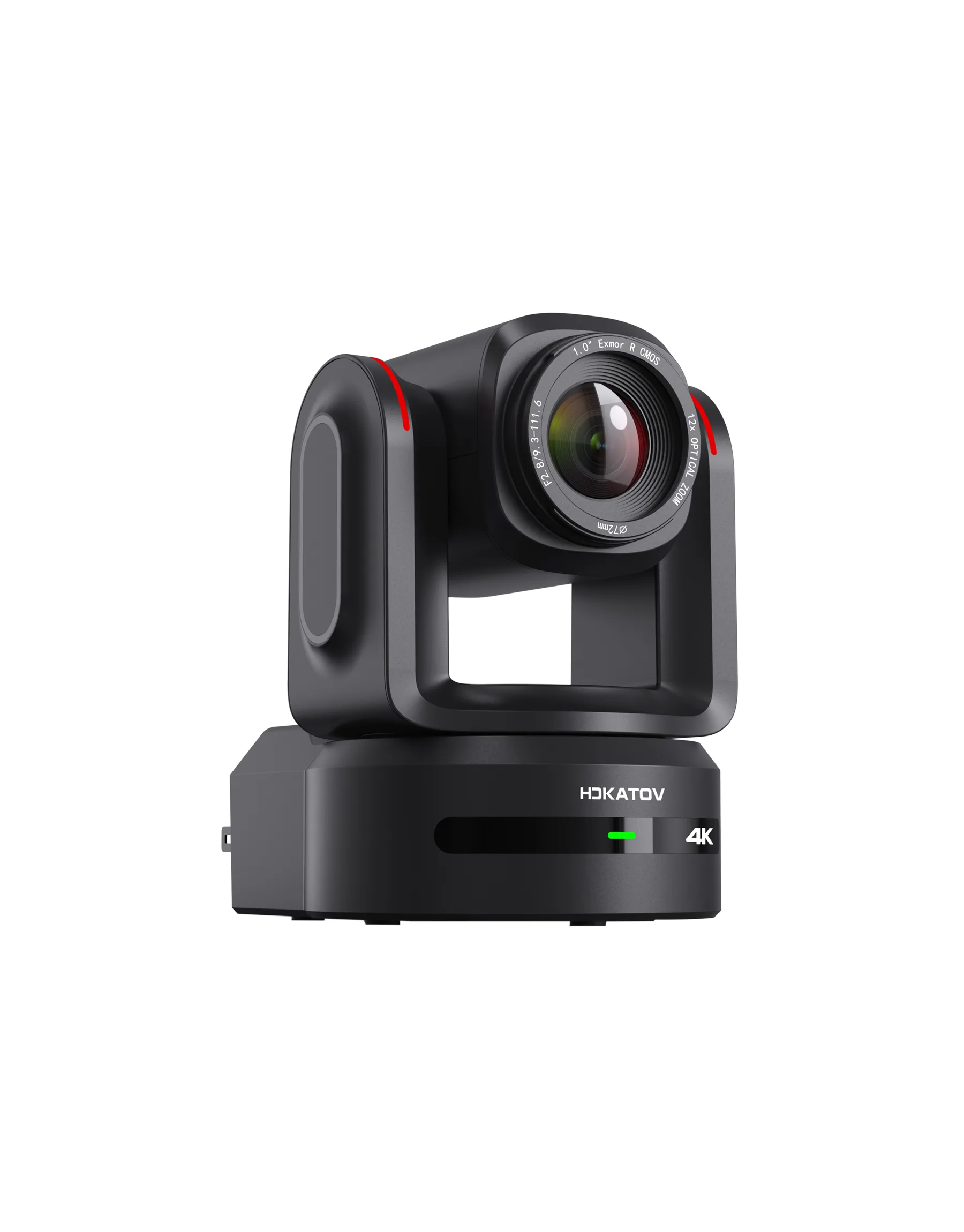

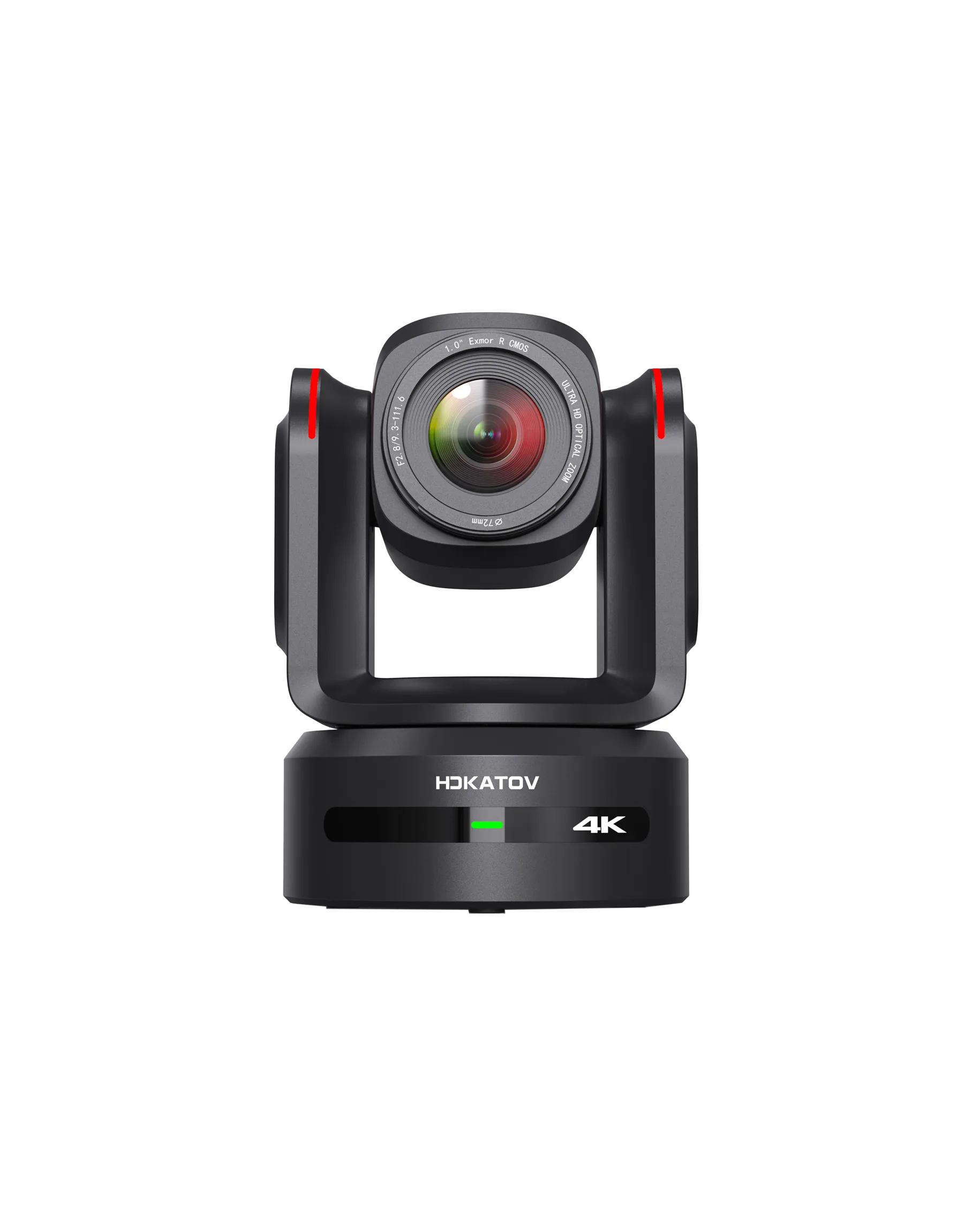

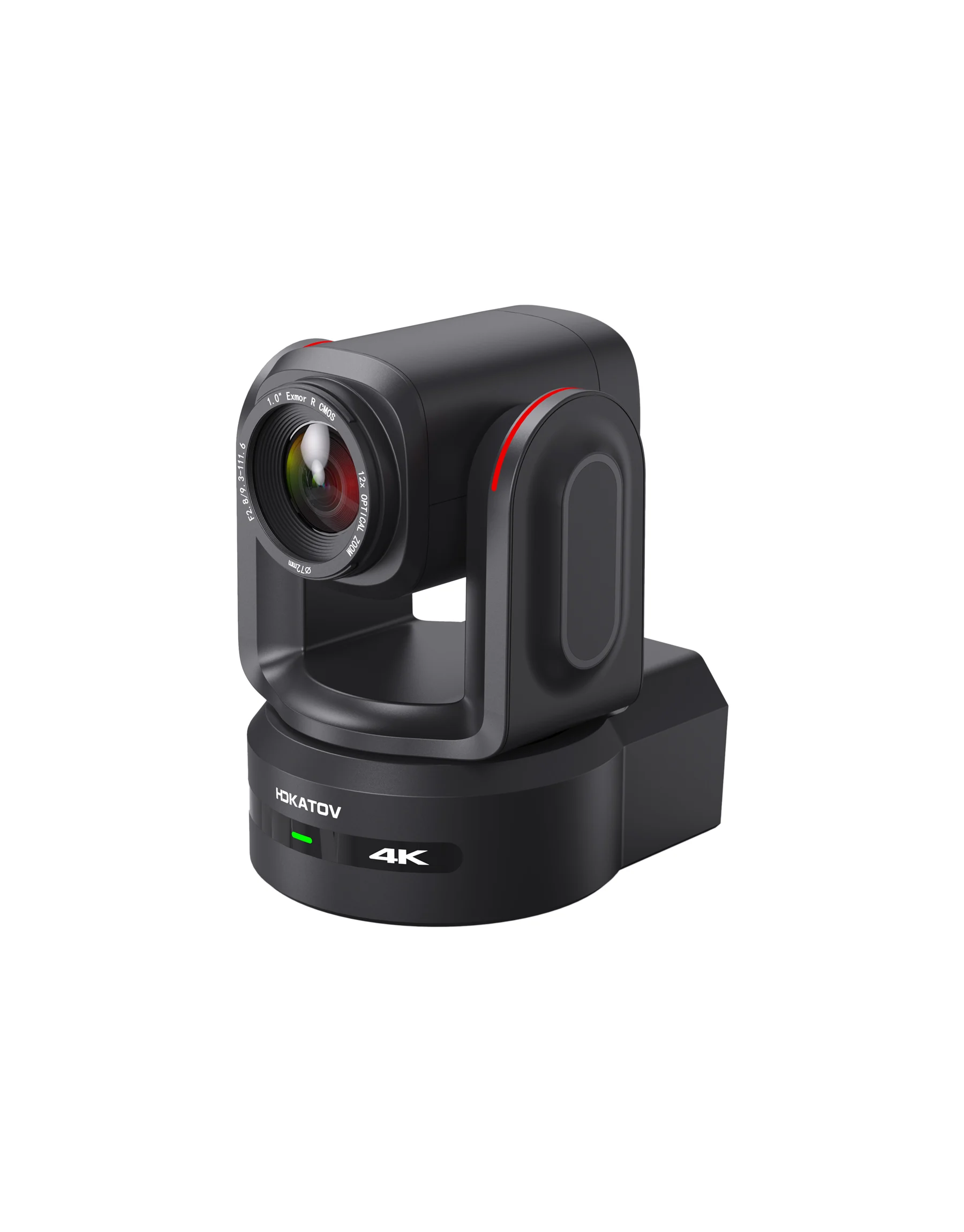

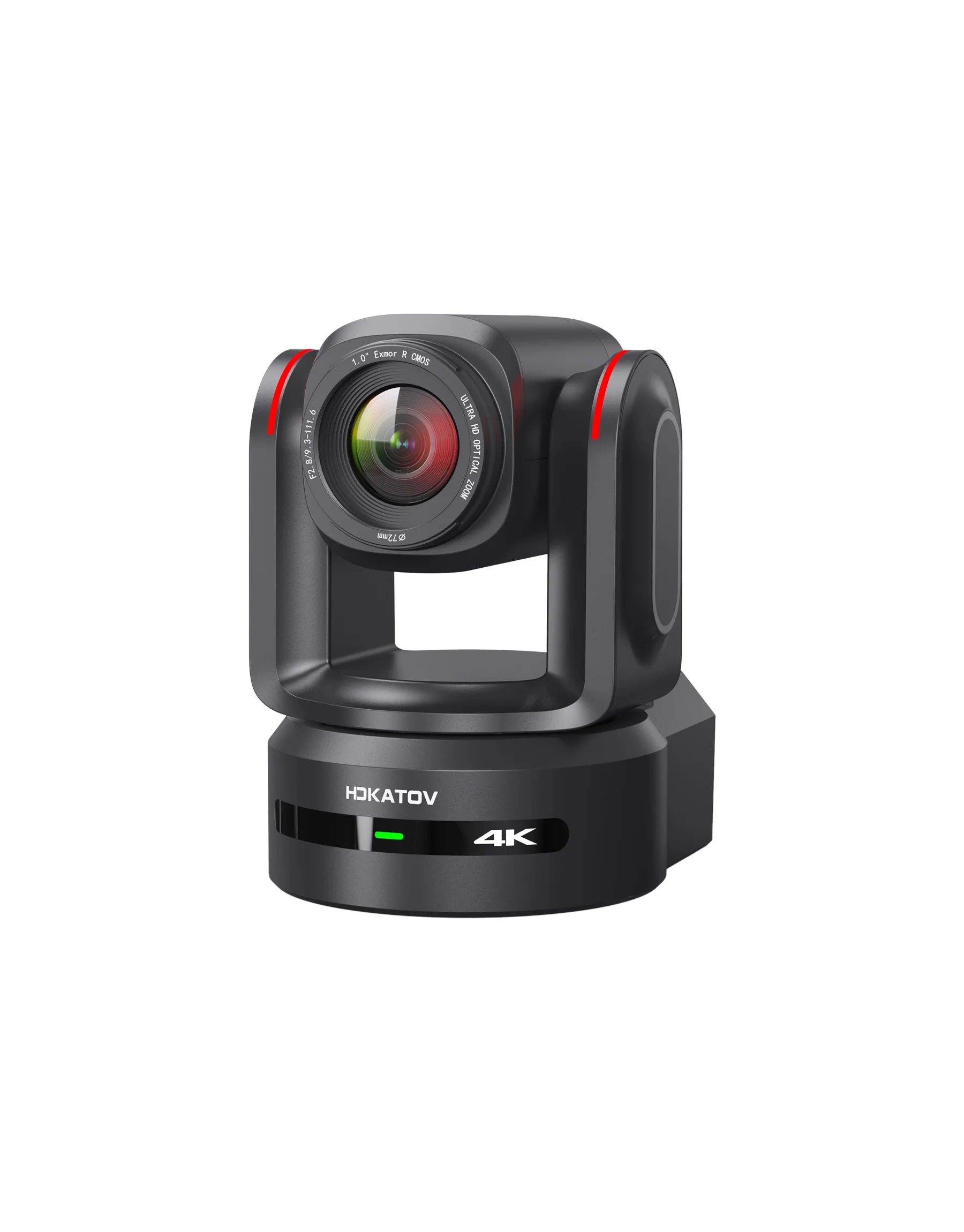

HDKaton BC10HU 4K 12x Broadcast Grade PTZ Camera
Professional 4K Broadcast PTZ Camera with 12x optical zoom, Sony Exmor R CMOS sensor, HDMI, 12G-SDI, 3G-SDI, LAN, and SFP28 fiber output, featuring GEN-LOCK synchronization, NDI®|HX / Full NDI support, and advanced low-light performance. Ideal for broadcast production, live events, churches, and large-scale streaming.
₹692,660
Broadcast-Grade 4K PTZ Camera for Professional Production
Built for professional broadcasting and live production, this advanced 4K PTZ Camera delivers ultra-high-definition imaging, synchronized multi-camera workflows, and flexible professional connectivity. Equipped with a next-generation Sony 1-inch Exmor R CMOS sensor, 12x optical zoom, GEN-LOCK synchronization, and NDI® support, it is the ideal solution for broadcasters, churches, live event production, and large venue streaming.
Stunning 4K Ultra HD Clarity with a 1-inch CMOS Sensor
HDKATOV BC10HU/BC10HUN professional PTZ camera features a next-generation 1-inch Sony CMOS sensor, delivering up to 20.5MP image quality and 4K Ultra HD (3840×2160) video output at exceptional clarity. The large-format sensor captures more light, offering superior dynamic range, vivid color reproduction, and crystal-clear detail—even in fast motion or low-light conditions.Combined with a high-precision optical zoom lens and advanced ISP image processing, the BC10HU/BC10HUN delivers smooth, sharp, and lifelike video, making it the perfect choice for broadcast production, professional live streaming, and studio applications.
Multi-Protocol Streaming for Seamless 4K Live Production
HDKATOV BC10HU/BC10HUN professional PTZ camera supports both high-bandwidth NDI® and efficient NDI®|HX protocols, enabling real-time encoding and transmission of high-quality 4K video with ultra-low latency. Whether you’re in a high-demand studio setup or a remote live stream, BC10HU/BC10HUNdelivers reliable and sharp visuals across IP networks.It also supports SRT (Secure Reliable Transport), ensuring secure, stable video delivery even over unpredictable public networks—ideal for long-distance streaming or hybrid events. With built-in RTMP/RTMPS support, you can stream directly to major live platforms like YouTube Live, Facebook Live, TikTok, Huya, and more, all with just one click.

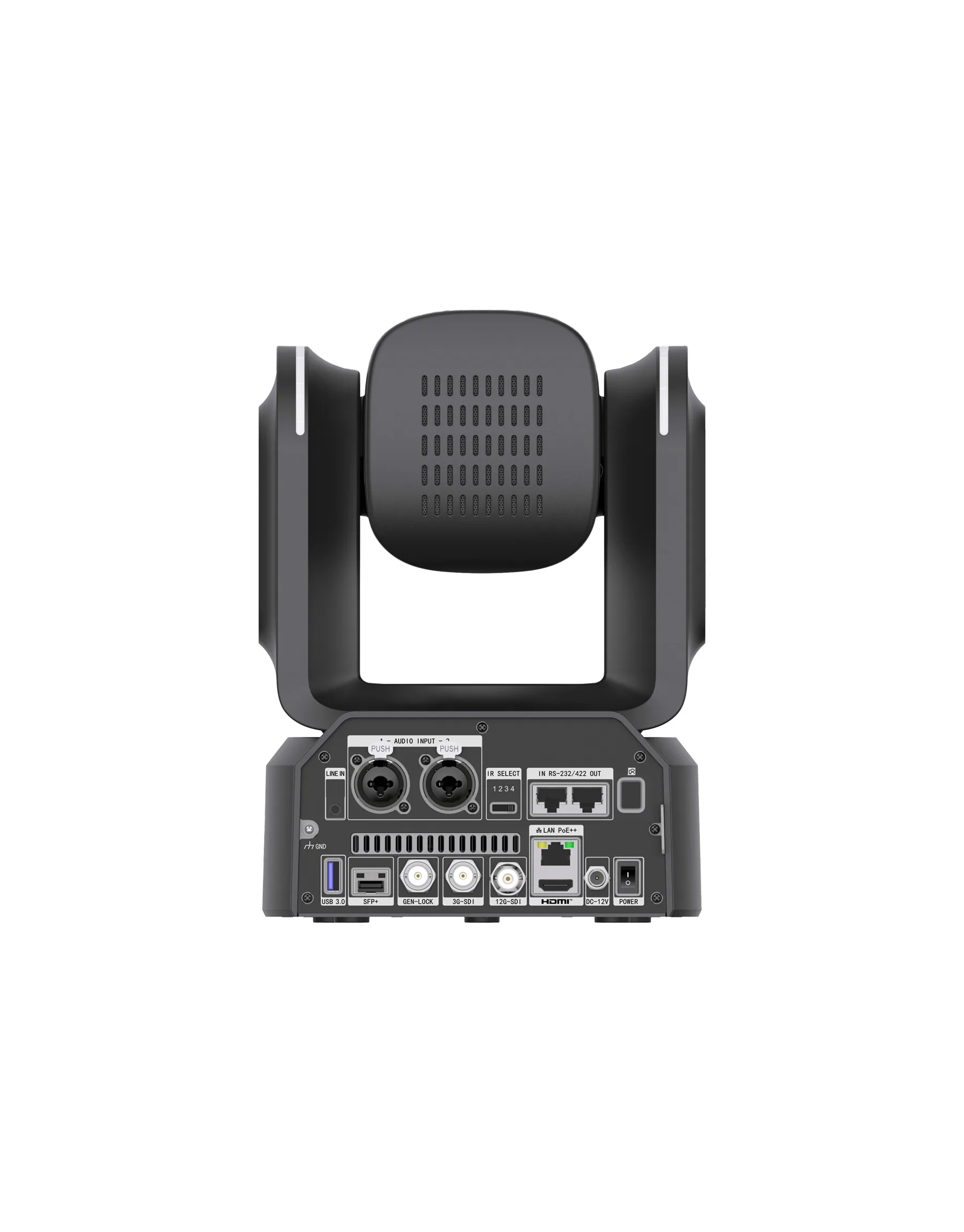

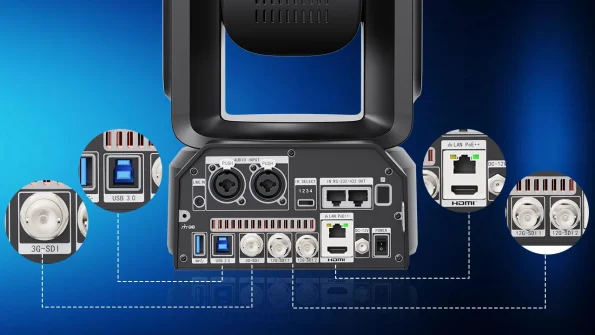

Versatile Output Interfaces for Seamless System Integration
HDKATOV BC10HU/BC10HUN offers multiple output options, including HDMI 2.0, 3G-SDI/12G-SDI, LAN, and SFP28 optical module, along with dual XLR audio inputs. Whether for live production, studio broadcast, or remote workflows, it ensures flexible connectivity and reliable 4K60p video transmission over long distances. Easily integrates into existing AV systems or builds a robust multi-camera setup with minimal effort.
Professional Genlock Synchronization for Seamless Multi-Camera Integration
HDKATOV BC10HU/BC10HUN supports Genlock input to synchronize with external timing signals, ensuring frame-accurate video and audio alignment across multiple cameras. This simplifies integration in broadcast studios, live events, and remote production workflows.

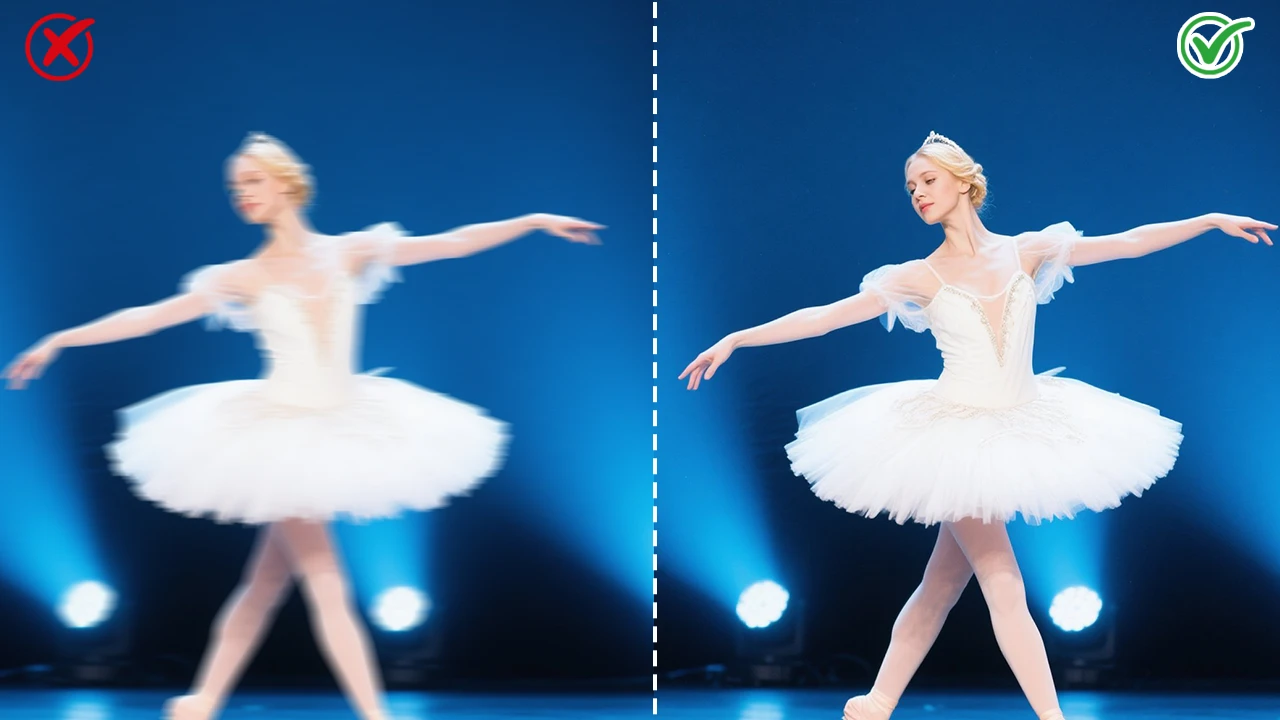

Electronic Image Stabilization for Steady Footage
HDKATOV BC10HU/BC10HUN features advanced EIS (Electronic Image Stabilization) to minimize shake and blur, delivering smooth and sharp video output. Even when mounted on sliders, cranes, or robotic arms, the camera ensures stable footage — perfect for dynamic environments like broadcast, stage performance, and professional live streaming.
FreeD Protocol Support for Seamless VR/AR Virtual Production
HDKATOV BC10HU/BC10HUN PTZ camera features built-in FreeD protocol support, enabling real-time transmission of precise PTZ (Pan, Tilt, Zoom, Focus) tracking data over IP. Seamlessly Integrate camera systems into virtual studios/virtual sets without the need for encoders..This allows content creators to deliver dynamic and immersive AR/VR studio experiences, making it ideal for broadcasting, corporate livestreaming, education, and more.

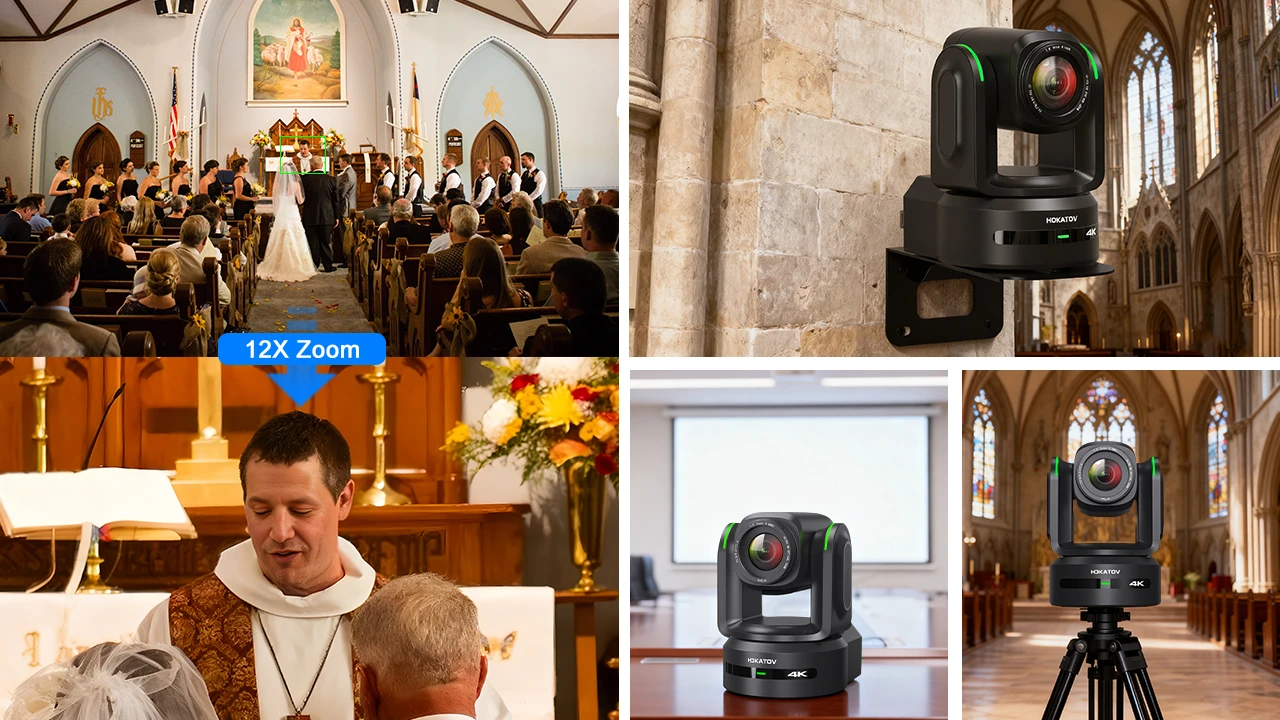

High-Speed Silent PTZ · From Wide to Close, Total Control
This PTZ camera delivers fast, whisper-quiet movement with a 12× optical zoom lens for both sweeping panoramas and sharp close-ups.Its Clear Image Zoom technology offers 18× lossless zoom in 4K and 24× in Full HD, expandable to 48× in Tele Mode for extended reach.Featuring dual Tally lights and flexible mounting options — ceiling, desktop, or tripod — it ensures smooth operation and a professional-grade control experience.
Side Screen Preview for Intuitive Setup
The camera features a built-in high-definition side display, allowing real-time monitoring without the need for an external screen. Installers can quickly adjust framing, focus, and color directly beside the unit, significantly reducing setup time. Whether for conferences, education, or broadcasting, the side preview offers a more intuitive way to manage image quality and ensure efficient, reliable deployment.
| Image Parameters | |
|---|---|
Video Format | HDMI: 4K30/29.97/25, 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 12G-SDI: 4K30/29.97/25, 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 3G-SDI: 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/50 |
| Image Sensor | Sony FCB-ES8230 original module |
| Pixel | 20.5 megapixels |
| Scanning Method | Line by Line |
| Lens | 12X Optical Zoom, f= 29mm (wide angle) ~ 348 mm (narrow angle), F 2.8 ~ F4.5 |
| Digital Zoom | 16X |
| Horizontal View Angel | 64 °(W) |
| Focus Mode | Automatic, Manual |
| Shutter Speed | 1/25s ~ 1/10000s |
| Minimum Illumination | 0.1Lux |
| Exposure | Auto, Manual, Aperture Priority, Shutter Priority, Brightness Priority |
| White Balance | Auto, Indoor, Outdoor, Keying, Auto Tracking |
| Backlight Compensation | Support |
| Digital Noise Reduction | 2D & 3D digital noise reduction |
| S/N Ratio | ≥50dB |
| Electronic Image Stabilization | Support |
| PTZ | |
| Pan Angle | -167 °~ + 167 ° |
| Tilt Angle | -30°~+90° |
| Pan Speed | 0.1°/S~120°/S |
| Tilt Speed | 0.1°/S~120°/S |
| Preset Positions | 9 preset positions by IR remote controller, 255 preset positions by joystick controller or PC |
| Preset Accuracy | 0.1°±10% |
| Flip | Support |
| Image Freeze | Support |
| POE++ | 802.3bt Type 3 |
| LAN | |
| Protocol | TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif , DHCP, VISCA Over IP, NDI®|HX, FULL NDI |
| Video Compression | H.264, H.265 |
| Code Stream | Main code stream*1, Sub code stream*1 |
| Main Stream Resolution | 3840*2160, 2560*1440, 1920*1080, 1280*720 |
| Sub Stream Resolution | 1280*720, 960*540, 640*360 |
| Bit Rate Control | VBR, CBR |
| Audio | |
| Audio Compression Standards | AAC |
| Sampling Rate | 48K and 44.1K |
| Interface | |
| HDMI Interface | 1 Line, HDMI: Version 2.0 |
| SDI Interface | 1 Line, G EN-LOCK, 1 Line, 3G-SDI, 1 Line, 12G-SDI |
| Optical Module Interface | 1 Line, Fiber(SFP28) |
| USB Interface | 1 Line, USB 3.0, Type- A socket |
| Network Interface | 1 Line, RJ45: 1000M adaptive Ethernet port |
| Audio Interface | 1 Line, Line In, 3.5mm audio interface, 2 Line, AUDIO INPUT, X LR audio port |
| Serial Interface | 1 Line, RS232 IN/OUT, up to 30 meters, VISCA/ Pelco -D/ Pelco -P protocol 1 Line, RS422, up to 1200 meters, VISCA/ Pelco -D/ Pelco -P protocol |
| Power Interface | IEC 60130-10 Type A |
| General Specifications | |
| Tally Light | Support |
| Input Voltage | DC 12V |
| Input Current | Max 1.3A |
| Power Consumption | Max. 15.6 W |
| Phantom Power | 48V |
| Operating Temperature | 0~40℃ |
| Storage Temperature | -10~60℃ |
| Color | Black |
| Dimension | (W) 189 * (D) 230 * (H) 259 mm |
| Weight | 4.15 kg |
| Accessories | DC12V power adapter, IR remote control, operating instructions, HDMI video cable, |
| Weight | 4.15 kg |
|---|---|
| Dimensions | 18.9 × 23 × 25.9 cm |
| Models | BC10HU, BC10HUN NDI Version |
