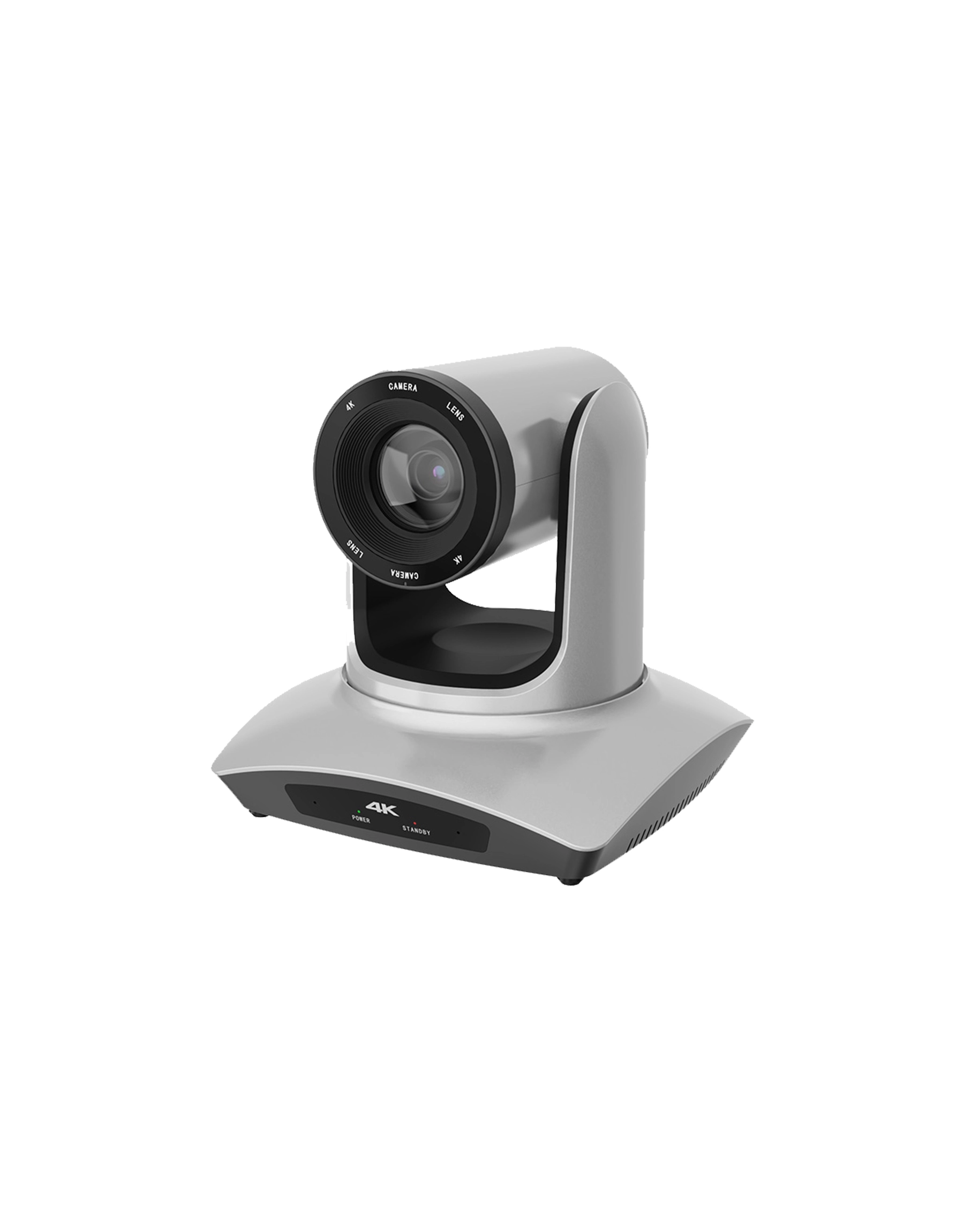

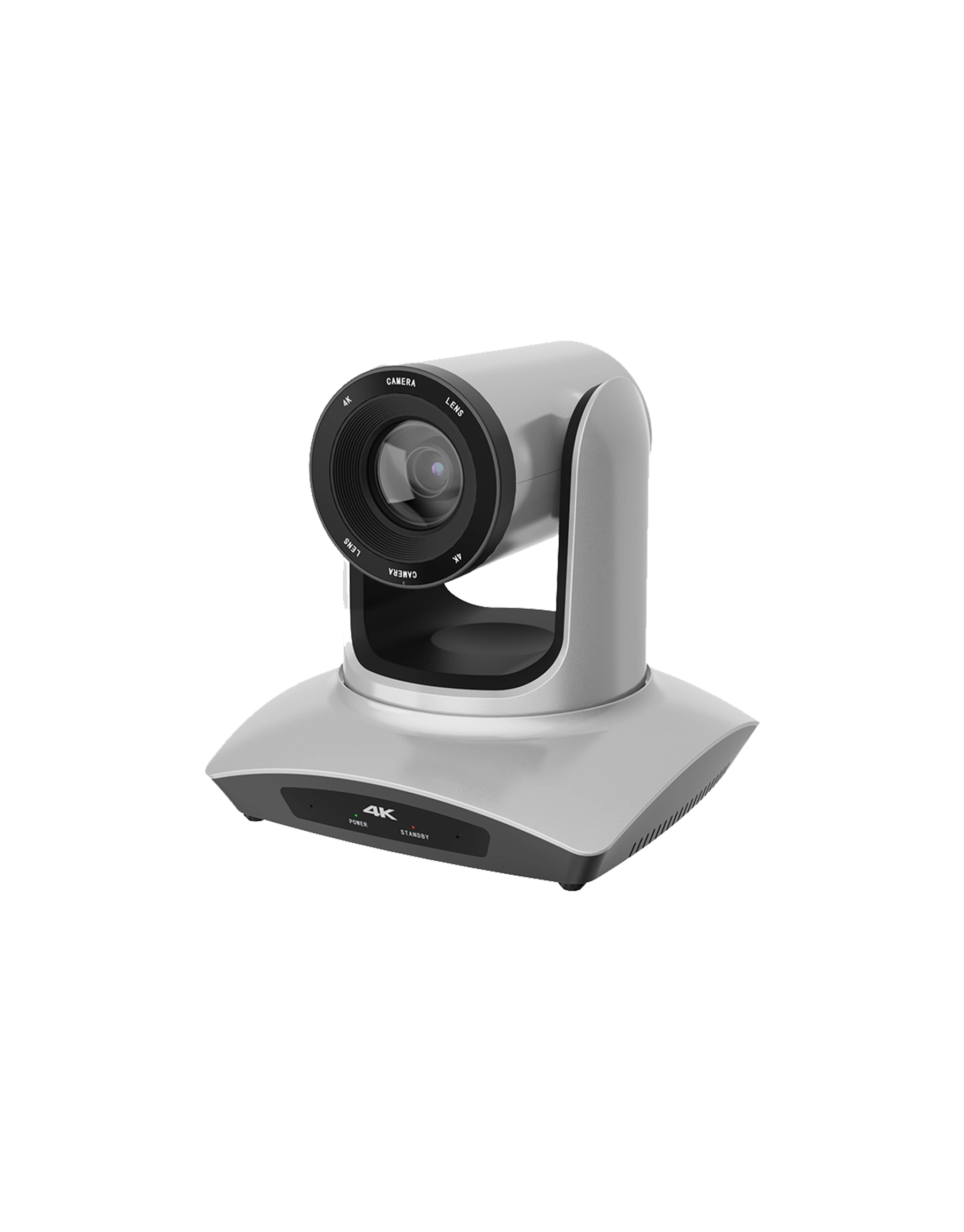

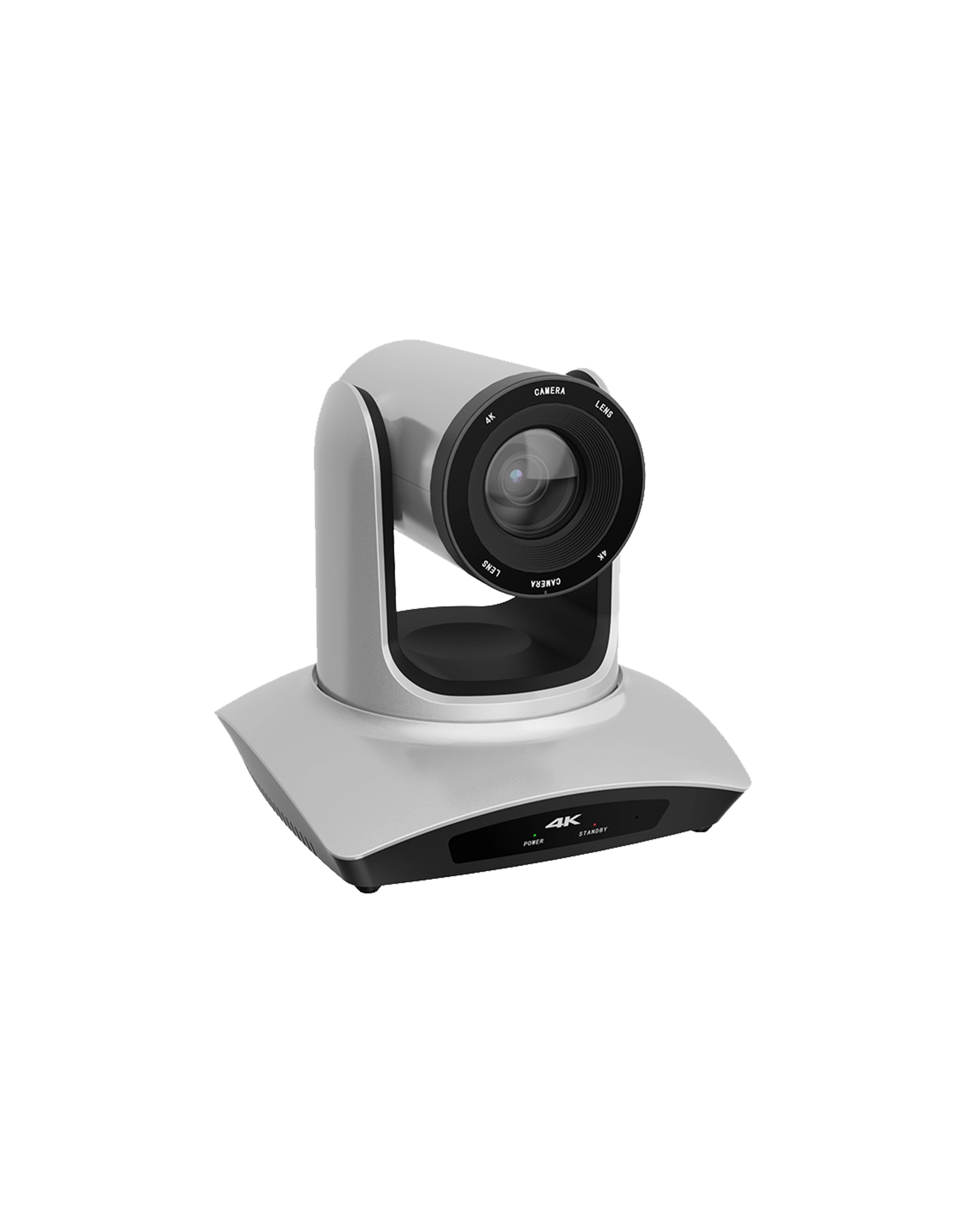

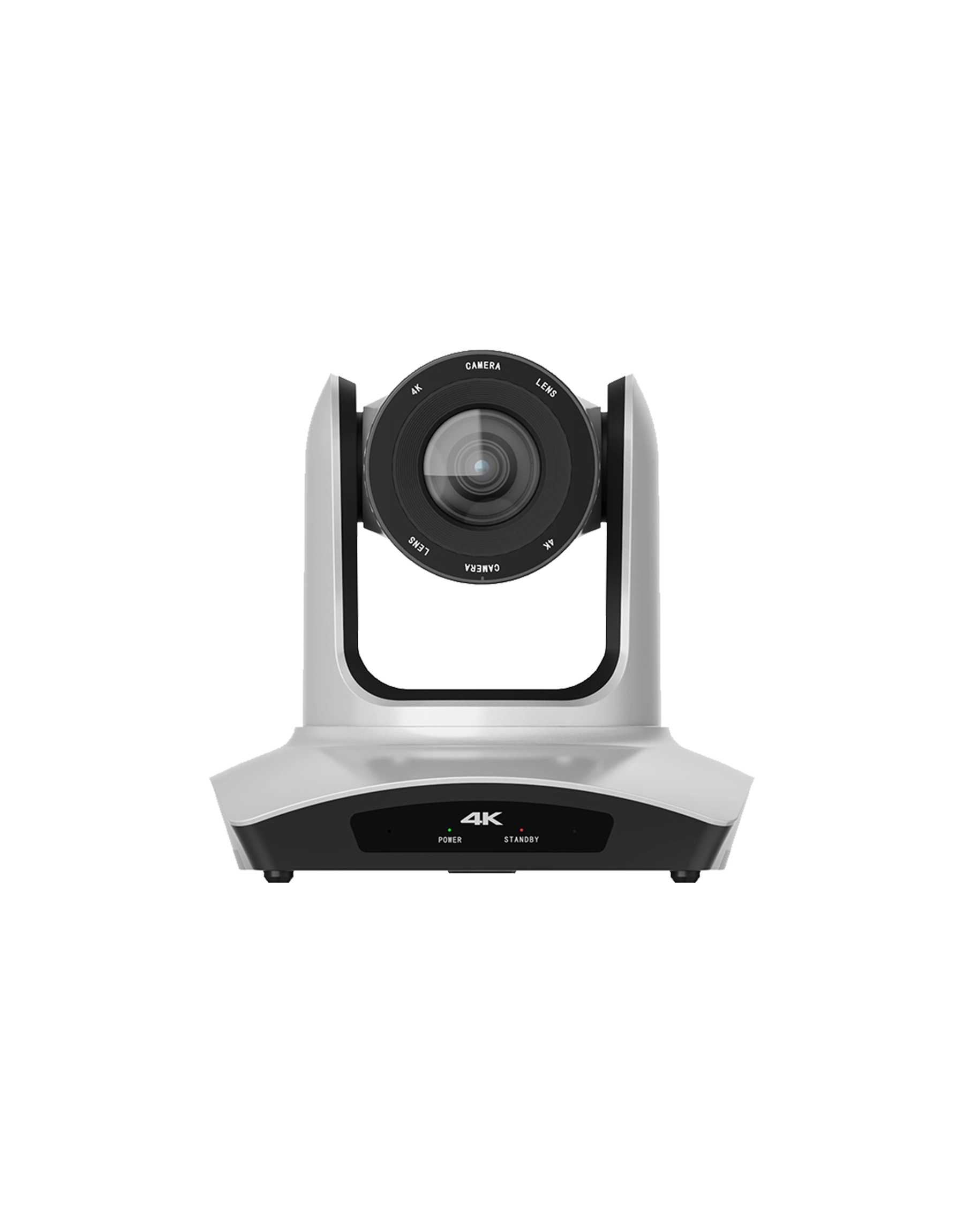

Kato KT-UH4001 10x HDMI USB 3.0 PTZ Camera
Experience professional-grade video production with this 4K PTZ Camera, featuring ultra-clear 4K@30fps recording, AI-powered auto-tracking, NDI®|HX2 support, Free-D integration, and up to 20x optical zoom. Designed for live streaming, virtual production, conferencing, education, and broadcasting, it delivers seamless performance with low-latency IP streaming and advanced low-light imaging.
₹45,000
Professional 4K PTZ Camera for Advanced Video Production
Upgrade your live production and streaming setup with this powerful 4K PTZ camera, engineered for professional broadcasting, conferencing, education, and virtual production. Equipped with a next-generation 1/2.8″ Sony CMOS sensor, intelligent AI tracking, Free-D protocol, and NDI®|HX2 support, this camera delivers exceptional image quality, flexible integration, and reliable performance in every environment.
Key Features
Ultra HD 4K Video Quality
Powered by an advanced Sony 1/2.8″ image sensor, the camera captures crystal-clear 4K video at 30fps, ensuring sharp and detailed visuals for professional productions, events, and presentations.
Powerful Optical Zoom Options
Available in 10x, 12x, or 20x optical zoom variants, combined with 16x digital zoom, enabling smooth transition from wide-angle coverage to detailed close-up shots without compromising quality.
Multiple Video Output Interfaces
Supports versatile video output options including:
- HDMI 4K Output
- LAN/IP Streaming (1080P)
- Simultaneous multi-channel video output for flexible workflow integration.
Excellent Low-Light Performance
Built with advanced 2D & 3D noise reduction technology and high signal-to-noise CMOS processing for clean, sharp, and detailed imaging even in low-light conditions.
Built-in Free-D Protocol
Integrated Free-D protocol outputs real-time camera positioning data for seamless use in:
- Virtual studios
- AR production
- Mixed reality workflows
- Broadcast graphics integration
NDI®|HX2 Support
Supports NDI®|HX2 for high-quality video, audio, and control transmission over a single Ethernet cable, enabling efficient IP-based production with low latency.
Advanced AI Auto Tracking Modes
Multiple intelligent tracking modes for dynamic shooting:
- Single-Person Tracking – Automatically follows one subject in real-time.
- Multi-Person Tracking – Detects and dynamically adjusts focus between multiple people.
- Hybrid Tracking – Combines preset zones with active subject tracking.
- Zone Tracking – Supports up to 4 preset tracking zones for large-area coverage.
Wide Protocol Compatibility
Supports professional streaming and control protocols including:
- ONVIF
- SRT
- RTSP
- RTMP / RTMPS
- Free-D
- VISCA
- PELCO-P/D
- NDI
Multi-Format Video Encoding
Compatible with:
- YUY2
- MJPEG
- H.264
- H.265
Ensuring efficient bandwidth management and high-quality streaming.
Ideal Applications
✔ Video Conferencing
✔ Lecture Halls
✔ Churches
✔ Telemedicine
✔ Live Streaming
✔ Online Education
✔ Virtual Production
✔ Event Broadcasting
Why Choose This PTZ Camera?
This PTZ camera combines 4K ultra-HD imaging, AI-powered tracking, professional IP streaming, and virtual production capabilities in one compact solution—making it the perfect choice for broadcasters, educators, content creators, and production professionals.
| Weight | 4 kg |
|---|---|
| Dimensions | 45 × 45 × 45 cm |
| Model | 10x, 12x, 20x |
| Sensor | 1/2.8-inch SONY CMOS Sensor, approximately 8.29 million effective pixels |
| Optical Zoom and Digital Zoom | 10/12/20X, 16X |
| Lens | 10X：f=4.32mm(Wide angle)～40.9mm(Narrow angle) |
| Horizontal Field of view | 10X:67.5(W)～7.6(T) |
| Vertical Field of view | 10X:40.2(W)～4.3(T) |
| HDMI Output Format | 3840*2160 p30/29.97/25 |
| USB Output Format | MJPEG: 3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 640*360, 480*270, 384*216, 320*180, 256*144 |
| Gimbal Preset | Remote Controls: 10, Keyboards: 255, Accuracy: 0.1°±10% |
| Gimbal Acceleration Curve | Gentle, Standard, Fast |
| Horizontal Rotation Angle | -168°～ +168° |
| Vertical Rotation Angle | -30°～ +90° |
| Horizontal Rotation Speed | 0.01°～ 90°/S |
| Vertical Rotation Speed | 0.01°～ 90°/S |
| Image Parameters Noise reduction | 2D & 3D |
| Exposure | Automatic, Manual, Aperture Priority, Shutter Priority |
| White Balance | Auto, Indoor, Outdoor, One-touch White Balance, Auto Tracking, Manual, Color Temperature |
| Low light | 0.1Lux |
| Anti-flicker | Off，50Hz,60Hz |
| Focusing Method | Automatic, Manual |
| Gamma | Standard, Linear, Pattern, Custom |
| Inversion/Image Freeze | Support |
| Backlight Compensation | Support |
| Flip/Mirror | Support |
| Defog | Support |
| Shutter | 1/30S ～ 1/10000S |
| Video Encoding Format | H.264, H.265 |
| Rate Control | Variable bit rate, Constant bit rate |
| Bitrate | Main stream 1920*1080 p30； 1280*720 p30 |
| Supported Protocol | TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, ONVIF, DHCP, VISCA Over IP, Free-D |
| Audio Compression Standard | AAC |
| Audio Bitrate | 128kbps |
| AI Composition Size | Half Body / Full Body |
| AI Composition Mode | Custom, Center, Left, Right |
| AI Composition Position | Current Position ,Preset Position , Initial Position |
| Horizontal Lock | Support |
| Pitch Lock | Support |
| Zoom Lock | Support |

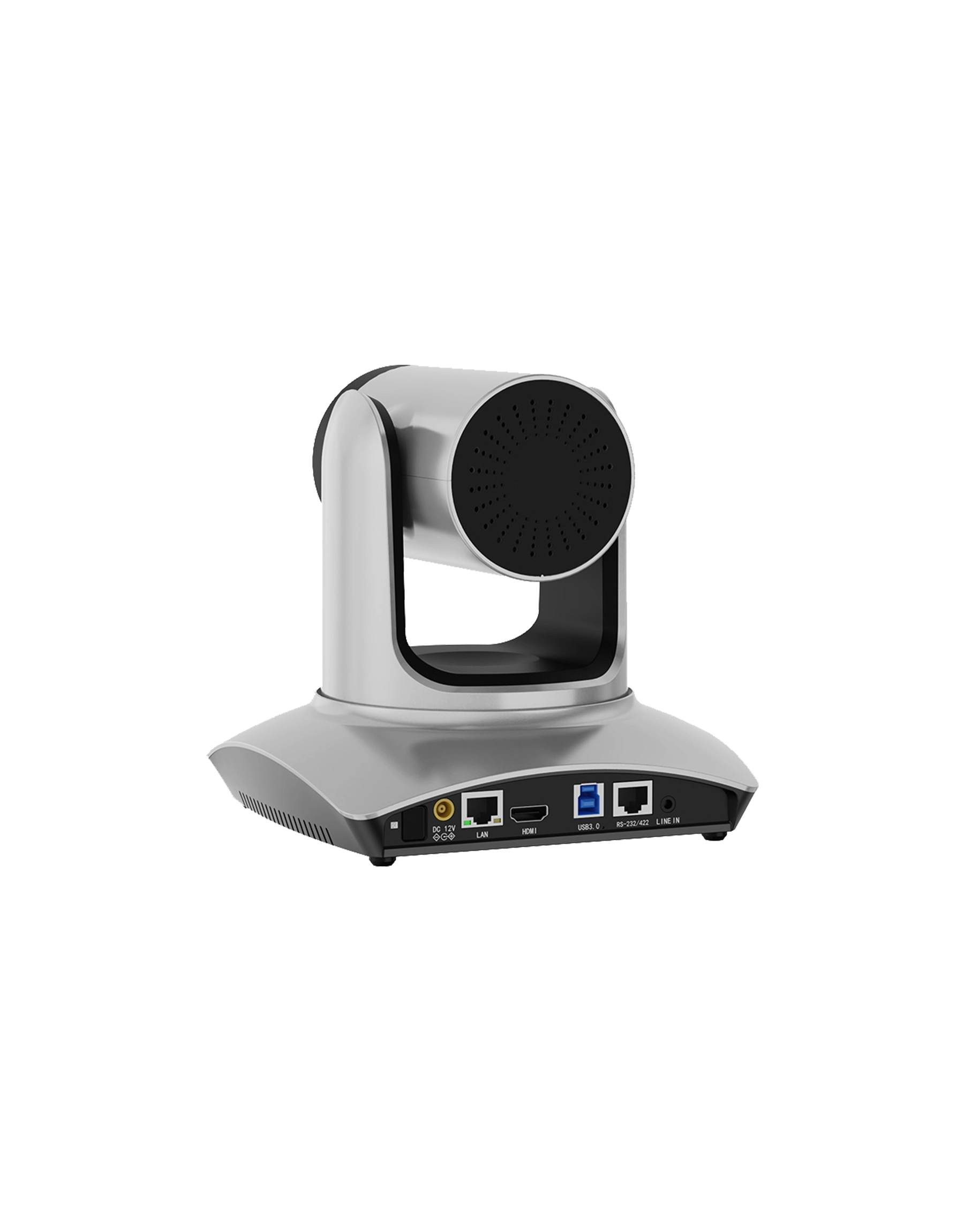

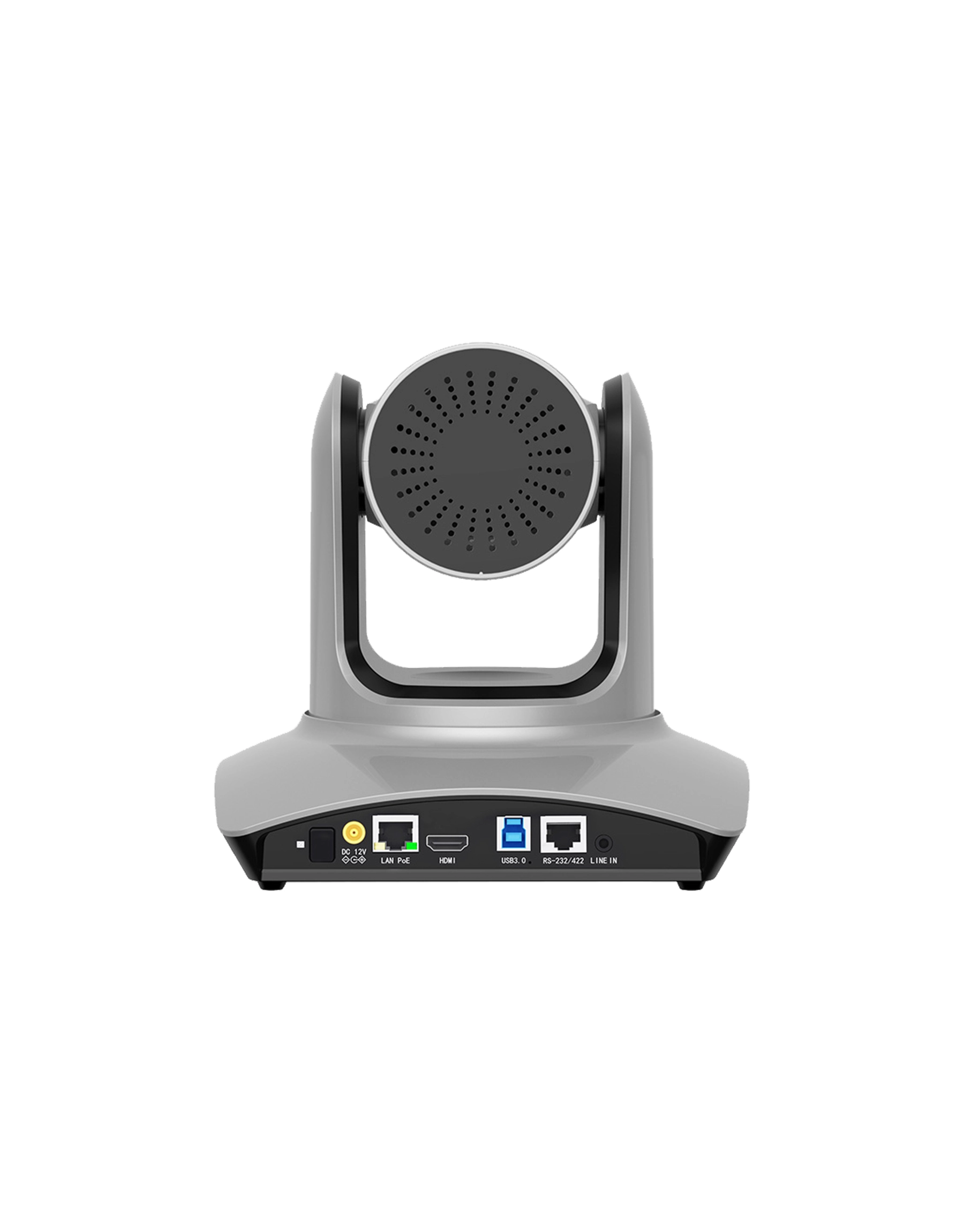

| HDMI Output Port | HDMI:Version 1.4 *1 Channel |
| USB Port | USB3.0, Type-B Socket *1 Channel |
| Audio Interface | 3.5mm Line In audio port *1 Channel |
| Communication Interface | RJ45 Interface, Supports RS232/RS422: VISCA/Pelco-D/P Protocol *1 Channel |
| Network Interface | RJ45:10M/100M adaptive Ethernet port *1 Channel |
| Power Connector | JEITA RC-5320A Type 4 |
| Input Voltage | DC 12V |
| Input Current | Up to 1.5A |
| Operating Temperature | 0～40℃ |
| Power Consumption | Up to 18W |
| Color | Silvery white |
| Specifications | 180*180*175mm |
| Weight | 1.3KG |
| Accessory List | DC12V Power Adapter, IR Remote Control, User Manual, USB 3.0 Video Cable, RS-232 Serial Cable (Optional), HDMI Cable (Optional), Bracket(Choose either hanging installation or wall installation) |
