SBS 5810 Pro IPTV OTT Video Transcoder
₹600,000.00
The SBS 5810 Pro HD IPTV OTT Video Transcoder has been upgraded to the SBS 5810 Pro, offering enhanced hardware for superior performance. This upgrade significantly boosts versatility, reliability, and stability, making the transcoding capacity has increased from 40 HD channels to an impressive 50 HD channels, allowing for more simultaneous streams without sacrificing quality or speed.
Version 1: Supports up to 2 SBS DVB / ATSC / ISDB – T capturing cards or HDMI encoding PCIe cards for receiving video signals. It can transcode up to 35 HD channels or 70 – 90 SD channels.
Version 2: Designed exclusively for IP stream input, without support for SBS cards.It can transcode up to 45 HD channels or 90 – 110 SD channels.
LAN ports upgrading
Compared with old generation, SBS 5810 Pro Transcoder is upgraded from 2x1Gbps LAN ports to 4x1Gbps ports, doubling the network bandwidth and providing 100% more throughput for handling high-volume data transfers and enhancing overall network performance.
Seamless Video Transcoding & Remuxing
Supports to convert video and audio codecs, allowing for seamless changes in resolution, bitrate, and frame rates to optimize content for various platforms and devices.
Enables the overlay of IPTV logos, text, or graphics onto live content, burn subtitles into the stream directly.
Allows for repackaging the existing video streams without altering the original codec.
Comprehensive Input & Output Support
Supports a wide range of inputs and outputs, including multiple protocol IP streams, DVB/ATSC/ISDB-T live TV signals, and HDMI video input. It also offers multiple protocol IP stream outputs. When equipped with a DVB Modulator PCIe card, it can output DVB signals as well.
Supported IP stream protocols for input and output include UDP, RTP, HTTP, HLS, RTSP, media files, RTMP, and SRT, ensuring flexibility and compatibility with various streaming environments.

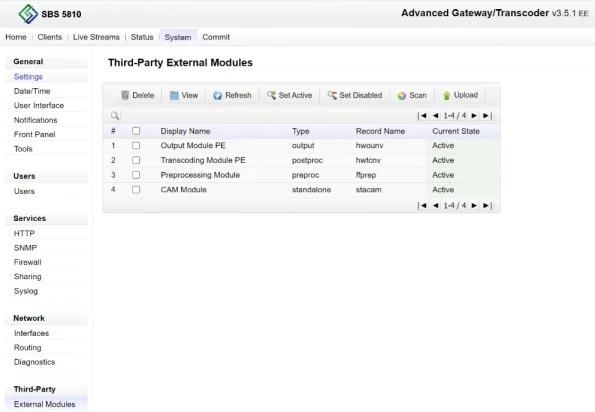

CAM Module & SoftCAM
When receiving and transcoding the popular channels from Satellite (DVB-S/S2), Cable (DVB-T/T2) or Terrestrial (DVB-C, ATSC-C, ATSC, ISDBT), SBS 5810 Pro transcoder supports to decrypt the scrambled channels via CAM modules or SoftCAM.
System Monitoring
Our intuitive monitoring design provides real-time insights into server CPU, memory, network, and GPU usage. You can easily check your server status, ensuring everything stays under your control.

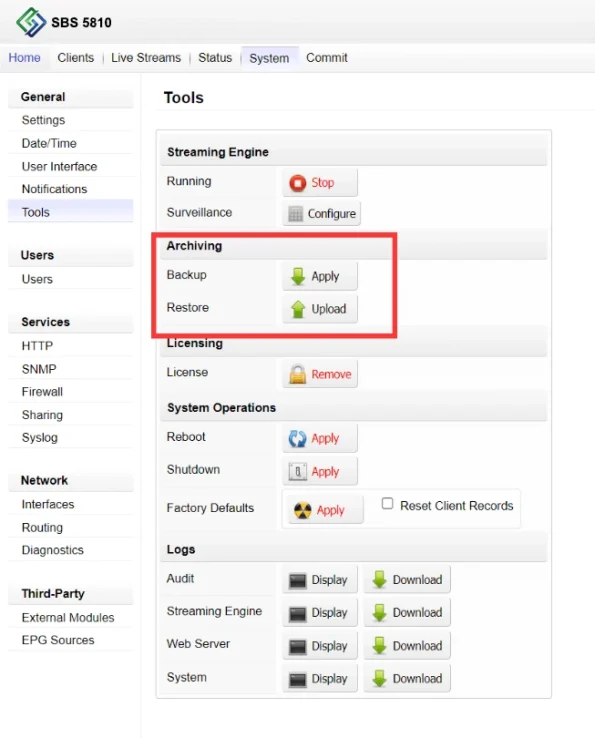

Database Backup & Restore
Provides a manual database backup feature that ensures your important data is protected. While backups must be initiated manually, this feature allows you to securely store your database, reducing the risk of data loss. In the event of hardware failure or disruptions, the backup can be restored easily, enabling quick recovery with minimal downtime.
Specifications
| Size | 1U |
| Interface | 4xRJ45, 1Gb LAN2xPCI-E slot for TV Tuner cards (Version 1 only) |
| Input | |
| Input Signal | DVBS/S2, DVBT/T2, DVBC, ATSC, ISDBT, DTMB, HDMI, ASI |
| Input Net Stream | UDP, RTP, HTTP, HLS, Media Files, SRT |
| Video codecs | AVC / H.264, HEVC / H.265 |
| Resolution | 1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i, 480×576, 544×576, 640×576,704×576 |
| Audio codecs | AAC, MP2, MP3, AC-3 |
| Output | |
| Output types | UDP, RTMP, HTTP, HLS(ABR), SRT |
| Video codecs | AVC / H.264, HEVC / H.265 |
| Resolution | 1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i, 480×576, 544×576, 640×576, 704×576 |
| Audio codecs | AAC, MP3 |
| Rate Control | CBR/VBR |
| Transcoder | Version 1: up to 70 – 90 SD/35 HD 1080 AVC (h.264) streams up to 60-80 SD/33 HD 1080 HEVC (h.265) streams Version 2: up to 90 – 110 SD/45 HD 1080 AVC (h.264) streams up to 70-90 SD/41 HD 1080 HEVC (h.265) streams |
| Power Consumption | Less than 200W |
| Weight | 16 kg |
|---|---|
| Dimensions | 45 × 45 × 25 cm |
| Brand |
